Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg

Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg
Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg
Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg

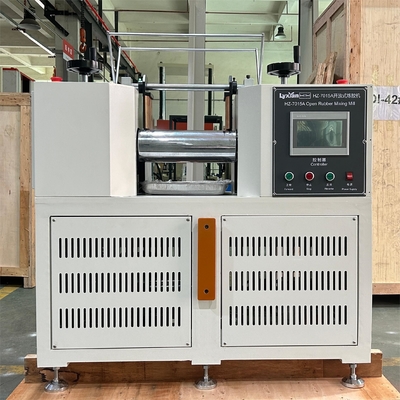

Large Image :  Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: CE/ISO
Model Number: HZ-7015
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~6000/ per set
Packaging Details: Standard export wooden case
Delivery Time: 7days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 sets/per month
Contact Now

Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg

Description
Model: HZ-7015 Roller Diameter: 4inch
Roller Face Width: 320mm Working Type: Electric Heating Type
Mixing Capacity: 0.3 To 2kg Heating Method: Water-cooled Cooling
Temperature Controller: PID Control Roller Hardness: 50～60 HRC
Roller Temperature: RT～ Water Temperature Device: SUS 304
Roller Spacing: 0.1～10 Mm Adjustable Motor Power: 4.5 KW

Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing Capacity 0.3 To 2kg

Rubber Two Roll Open Mill Equipment Summary

The Rubber Two Roll Mill Supplier Equipment suitable for plastic industry polymer material mixing and processing such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use.



Rubber Two Roll Open Mill Reference Standard

HG/T 3108-199



Rubber Two Roll Open Mill Technical Parameters

Model number
HZ-7015
Application
Rubber Mixing Mill Machine
Roller Diameter
120mm/4inch
Roller face width
320 mm
Mixing capacity
0.3~2kg
Safety device number
8 PCS
Power voltage
3phase,AC380V
Roller spacing
0.1~10mm adjustable
Motor power
4.5KW
Roller hardness
50~60HRC
Product name
Two Roll Mill
Features
1. The core technology from Taiwan, The main parts adopt the French schneider.
2. Water-cooled, surface temperature by water cycle at room temperature - water temperature, at the same time temperature uniformity.
3. Two motor driven,arbitrary roller speed ratio before and after implementation,easy to operation.
4. Integral plate,easy installation.Driving mode is uniaxial output to ensure the big torque,imported bearings to reduce friction to save electricity, reduce noise, and Rubber thickness uniform parallel controllable.
5. Transmission device adopts double double frequency converter control,Low noise, long service life.
Two Roll Open Mill Product Description
Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg 0



Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg 1

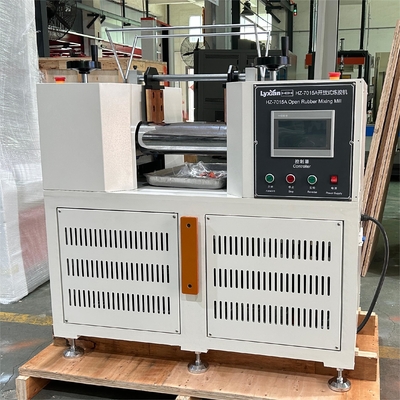

Two Roll Open Mill Details Images
Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg 2Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg 3
Two Roll Open Mill Rubber Mixing Machine Open Rubber Mixer Equipment With 1 Year Warranty Rubber Mixing capacity 0.3 To 2kg 4
