Steel Metal Torsion Testing Machine Equipment With 1 Year Warranty Microcomputer Controlled 3000Nm Max Load

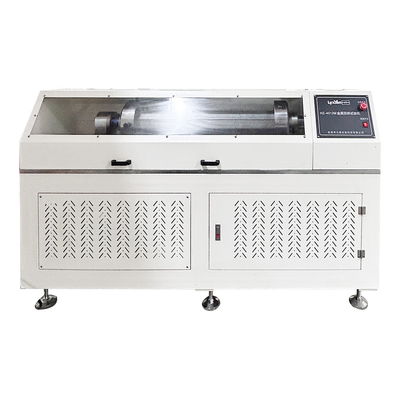

Large Image : Steel Metal Torsion Testing Machine Equipment With 1 Year Warranty Microcomputer Controlled 3000Nm Max Load

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-4012M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

Steel Metal Torsion Testing Machine Equipment With 1 Year Warranty Microcomputer Controlled 3000Nm Max Load

Description

Product Name:	Metal Torsion Testing Machine	Optional Sensor Maximum Range:	3000 (Nm)
Distance Between Force & Torque Plate:	0~500(mm)	Torque Measurement Range:	1%-100%FS
Test Speed:	0.05-720°/min	Test Torque Resolution:	1/±300000
Relative Error Of Angle Indication:	≤±1% (forward And Reverse Directions)	Minimum Angle Reading Value:	0.01°
Power Supply:	AC 220V±10%, 50Hz;	Warranty:	1year
Highlight:	Steel Metal Torsion Testing Machine Equipment , Microcomputer Controlled Torsion Testing Machine , 3000Nm Torsion Testing Machine

Steel Metal Torsion Testing Machine Equipment With 1 Year Warranty Microcomputer Controlled 3000Nm Max Load

Metal Torsion Testing Machine Product Description

Microcomputer controlled torsion testing machine is mainly used for testing the torsion mechanical properties of metal materials and bolts, tools, finished products, structural parts, transmission shafts, parts, fasteners and other samples at room temperature or in special environments. It can also be used for torsion damage and other performance tests of non-metallic materials and finished products. The tested samples are installed between the clamps with adjustable space, which can adapt to the torsion mechanical properties test of different tested samples.

Metal Torsion Testing Machine Specification

Model number	HZ-4012M
Application	Metal Torsion Testing Machine
Optional sensor maximum range	3000 (Nm)
Distance between force & torque plate	0~500(mm)
Torque measurement range	1%-100%FS
Test speed	0.05-720°/min
Test torque resolution	1/±300000
Relative error of angle indication	≤±1% (forward and reverse directions)
Minimum angle reading value	0.01°
Power supply	AC 220V±10%, 50Hz;
Test level	Level 1
Weight	400KG

Applicable Industry

metrology quality inspection, metallurgy and steel, machinery manufacturing, fasteners, hardware tools, automotive parts, colleges and universities, scientific research laboratories, etc.

Host structure and Electrical system
1 Host

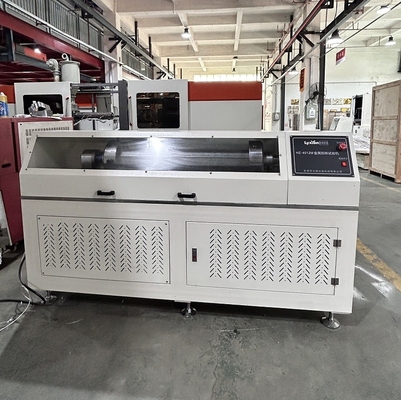

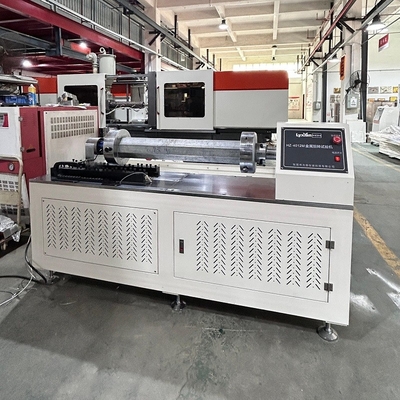

The host adopts a horizontal structure. The test space can be adjusted to the torque disc connection sensor as the torque collection end, and the other end is loaded with a precision CNC servo motor that drives the force disc to rotate through the cycloidal reducer. The torque is transmitted to the torque disc end by loading the specimen for testing. The torque collection end can be moved along the linear guide rail to adjust the test space and facilitate the clamping of the specimen.

2 Transmission system
By adopting precision CNC servo motors and drivers, the cycloidal reducer outputs uniformly to ensure wide-range speed continuous adjustment and uniform loading during the test process;

3 Torque and torsion angle detection
A high-precision torque sensor is used to measure torque in both positive and negative directions; the output of the torsion angle is collected and output by the angle displacement sensor to ensure the authenticity and effectiveness of the displayed angle. Through the computer data acquisition and processing system, the collected sensor signals are processed and displayed on the computer screen.

4 Measurement control system:
The test machine adopts computer control operation, and the software synchronously displays the torque-time, torsion angle-time, torque-torsion angle, torque-angle and other curves of the tested specimen; real-time display of angle, torque, torque peak and other parameters.

5 Test process
The entire test process uses a Windows-based, graphically interfaced window-based operating software. The test parameters are input by keyboard, and the virtual buttons are operated by mouse to automatically complete the entire test process. The test results can be generated in a variety of report formats, which is convenient for printing and analyzing the test results.
