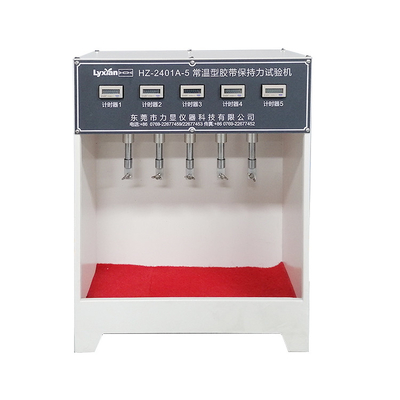

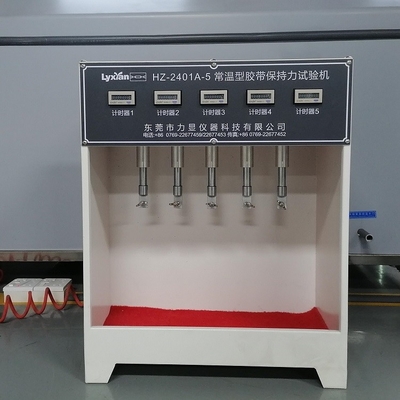

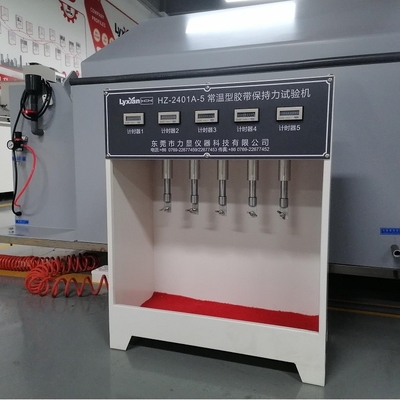

Adhesive Tape Retention Testing Machine Equipment Normal Temperature-type 5 Groups Test Seperate

Large Image : Adhesive Tape Retention Testing Machine Equipment Normal Temperature-type 5 Groups Test Seperate

Product Details:

Place of Origin:	China
Brand Name:	Lixian
Certification:	CE, ISO
Model Number:	HZ-2401

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 190~3000/per set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Contact Now

Adhesive Tape Retention Testing Machine Equipment Normal Temperature-type 5 Groups Test Seperate

Description

Model:	HZ-2401	Application:	Adhesive Tape Retention Testing Equipment
Load:	1kg	Determination Group Number:	5 Group ,can Test Separately
Automatic Timer:	1-999,999min (min.or Sec Settable)	Type:	Normal Temperature-type
Connector:	10P.S;	Weight:	32kg
Highlight:	Adhesive Tape Retention Testing Machine Equipment , Baking Tape Testing Machine , Baking Tape Testing Equipment

Adhesive Tape Retention Testing Machine Equipment Normal temperature-type 5 groups test seperate

Tape Retention Testing Machine Equipment summary:

Normal temperature tape retention tester performs static load test on the adhesive force of tape, and automatically records the time that the tape can be maintained under a certain load to confirm the timeliness of the tape adhesion. Cut a 1-inch wide strip of tape and stick it on the specified SUS#304 stainless steel plate. The 2kg standard roller rolls back and forth three times at a speed of 300mm per minute. The steel plate is hung on the tester and the specified weight is added. When the tape falls off the steel plate, the timer will automatically retain the test time to evaluate the durability of the tape adhesion.

Tape Retention Testing Machine Application
Normal temperature tape retention tester is widely used in adhesive products industries such as adhesive tapes, protective films,stickers, labels, foams, adhesives, etc.

Tape Retention Testing Machine Main feature:
The normal temperature tape retention tester adopts a fully enclosed structure design, which eliminates the harsh requirements of the test process on the environment; it has an automatic memory function for the specimen drop time, and does not require operators to monitor during the test; the structure is beautiful and generous, the operation is simple, and it is practical and convenient.

Tape Retention Testing Machine meet the standard:
Design Standards: CNS11888, PSTC7.

Tape Retention Testing Machine Operation method steps:
1. Place the testing machine on a solid tabletop and keep the machine in a horizontal state;
2. Press the RESET button of the timer to reset it to zero;
3. Take a certain length of tape to be tested and place it on the attached test piece. The test piece is made of #304 mirror steel plate, and then wipe it clean with steel plate cleaner. Use HZ-2403A/B roller machine to roll the tape to make the tape evenly adhere to the test piece (usually 1"×1"). Prepare ten groups of test pieces using this method;

4. Hang the 5 sets of adhesive sheets with the tape on them (leave them for 20 minutes after bonding) on the hooks in the testing machine;
5. Take 5 weights and hang them on the connecting piece under the tape on the test piece. While hanging, the timer switch automatically starts timing, and the power supply of each timer is independent;
6. When the tape falls off, the timing will automatically stop and the tested time will be retained, and the sticking time or sliding displacement of the tape will be read;

7. Before each test, be sure to reset the timer to zero.

Tape Retention Testing Machine Notice:
1. The machine should be kept level and stable.
2. After testing and testing, the steel plate must be cleaned and wiped clean.
3. The tape should be adhered smoothly and evenly to the test piece to avoid affecting the test accuracy.
4. After fitting, leave it for 20 minutes before testing (or test according to customer requirements).
5. Please have it operated by professionals to avoid improper use.

Tape Retention Testing Machine Maintenance:
1. Please wipe and maintain with a clean cotton cloth. If there is any residual glue left on the steel plate, please clean it with alcohol in time and wipe it clean.

2. Cleaning and maintenance are required after use.

Tape Retention Testing Machine Specification

model number	HZ-2401
Application	adhesive Tape Retention Testing Equipment
Load	1kg
Determination group number	5 group ,can test separately
Automatic timer	1-999,999min (min.or sec settable)
Type	Normal temperature-type
Product name	adhesive Tape Retention Testing Equipment
Machine weight	About 32(KG)
Connector	10P.S;
Power supply	220V
Application	adhesive Tape
