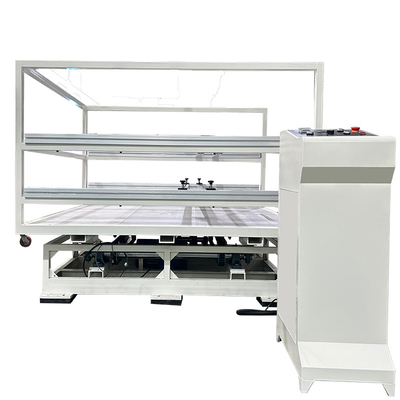

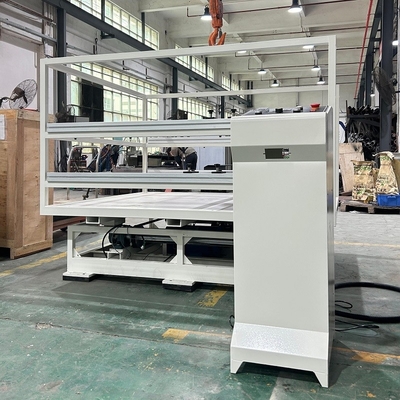

Simulation Transport Vibration Table Testing Equipment For Toys Packaging Carton Maximum Test Load 100-200 Customized Kg Amplitude Range 25.4 Mm

Large Image : Simulation Transport Vibration Table Testing Equipment For Toys Packaging Carton Maximum Test Load 100-200 Customized Kg Amplitude Range 25.4 Mm

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-2108

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

Simulation Transport Vibration Table Testing Equipment For Toys Packaging Carton Maximum Test Load 100-200 Customized Kg Amplitude Range 25.4 Mm

Description

MODEL:	HZ-2108	Maximum Test Load (KG):	100-200(Or Customized) Kg
Frequency Range:	100~300(rpm)	Amplitude Range (mm):	25.4mm
Vibration Mode:	Gyration	Simulation Speed:	25~40km/h
Platform Size:	1000*1200(Or Customize) (mm)	Machine Weight:	About 150(KG)
Highlight:	Packaging Carton Transport Vibration Table , Customized Transport Vibration Table

Simulation Transport Vibration Table Testing Equipment For Toys Packaging Carton Maximum Test Load 100-200(Or Customized) Kg

Vibration Test Table Equipment summary:

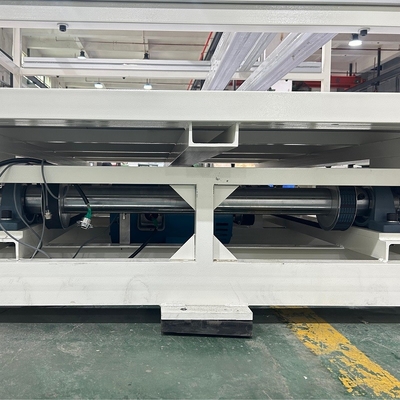

Carton vibration test machine is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.

Vibration Test Table Technical Parameters

Model	HZ-2108
Maximum test load (KG)	100-200(Or customized) kg
Frequency range	100~300(rpm)
Amplitude range (mm)	25.4mm
Vibration mode	Gyration
Simulation speed	25~40km/h
Platform size (mm)	1000*1200(Or customize)
Machine weight	About 150(KG)
Applicable Industry	toys, electronics, furniture, gifts,etc
Power supply	220V 60HZ

Functional Characteristics:
1. Digital display vibration frequency, high precision;
2. Synchronous and silent broadband transmission, low noise;
3. The sample fixture adopts guide rail type, convenient and safe operation;
4. Heavy-duty trough steel base with vibration damping rubber, easy to install, strong load, smooth operation;
5. According to the restructuring of similar European and American equipment, rotary vibration, in line with the European and American transportation specifications;
6. Suitable for toys, electronics, furniture, gifts, ceramics, packaging and transportation industry to test the packaging of
products;
7. According to the similar equipment in Europe and America, rotary vibration, in line with the European and American
transportation specifications.

Applications Industry: The machine applies to toys, electronics, furniture, gifts, ceramics, packaging and other products packaged to simulate the transport tests, in line with the United States and European transport standards.
