Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton

Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton
Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton
Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton

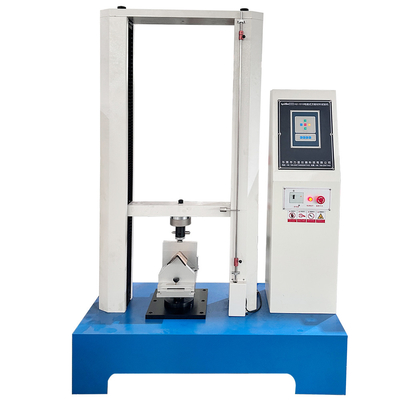

Large Image :  Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton

Product Details:
Place of Origin: CHINA
Brand Name: lixian
Certification: CE
Model Number: HZ-1010B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wooden
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton

Description
Control Mode: From 0.4% To 100% Power: 750W(depending On Different Demand Of Force, Using Different Motor)
Accurate Grade: 0.5 Grade Testing Speed: From 0.01 To 500mm/min,
Drive System: Taiwan “Delta” AC Servo Motor Safety: Overload 10%, Automatic Protection
Usage: L-Shaped Cardboard Bending Test Equipment Key Words: Bending Test Equipment
Data Sampling Frequency: 200times/sec Max Load Capacity: 2kN,5KN,1ton,2ton,option
Grip: Bending Servicr: OEM ODM
Highlight:

5KN Servo Universal Testing Machine

,

1ton Servo Universal Testing Machine

,

2kN Servo Universal Testing Machine

Servo Universal Testing Machine L-Shaped Cardboard Bending Test Equipment Maximum Load 2kN,5KN,1ton,2ton,Option

Universal Testing Machine Equipment Summary:
L-shaped cardboard fixed corner bending tester is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive , computer and color inkjet printer. it has accurate load speed,range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. Floor-standing models, it is taken account of modern industrial design.

Universal Testing Machine Specification
Model
ZME-1010B
Maximum load
2kN,5KN,1ton,2ton,option
accuracy of load measurement
the value ±1% / the value ±0.5%
Effective testing width
450mm(can be widened)
displacement resolution
0.001mm
power
0.75KW
Motor
Panasonic AC servo motor and drive
Range of testing speed
0.001~500mm/min
Accruacy of displacement measurement
Tolerance: ±0.5%/ tolerance: ±0.2%
Overload protection
Overload 10%,automatic protection

Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, culculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.

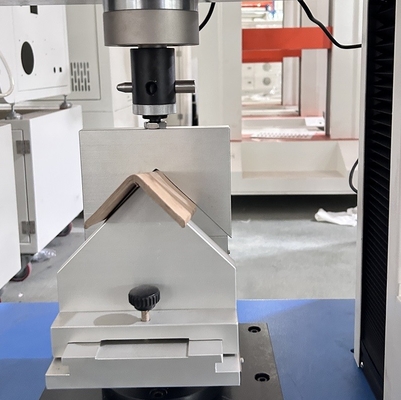

Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton 0

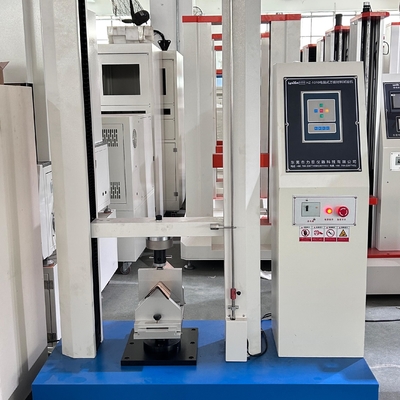

Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton 1

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 25 year.

Lab UTM in Stock 20KN ASTM A370 Metal steel sheet welding tensile strength testing device

Recommend Products
Universal testing machine, a material testing machine integrating tensile, bending, compression, shearing, ring stiffness and other functions. It is mainly used for the mechanical performance testing of metal and non-metal materials. It is used in industrial and mining enterprises, scientific research units, colleges and universities, engineering Ideal testing equipment for quality supervision stations and other departments.
Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton 3



Model: HZ-1007E
Max force:100kg
Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton 4

Model:HZ-1005A

Max force: 500kg
Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton 5

Model: HZ-1007A

Max force: 200kg
Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton 6

Model:HZ-1003A

Max force:2000kg
Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton 7

Model: HZ-1009A

Max force: 10T
Servo Universal Testing Machine L Shaped Cardboard Bending Test Equipment Maximum Load 2kN 5KN 1 Ton 2 Ton 8

Model: HZ-1007C

Max force:200kg
