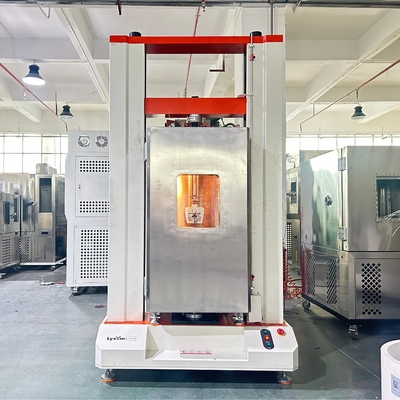

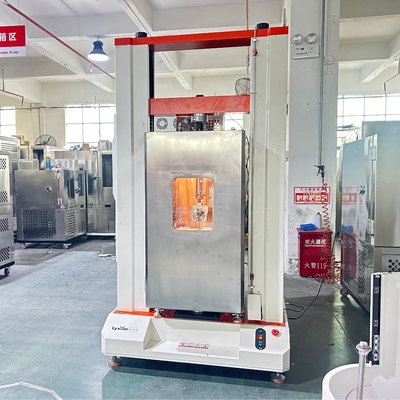

High Temperature Computer Controlled Universal Tensile Machine With Test Oven For Metal Tensile Strength Testing Machine

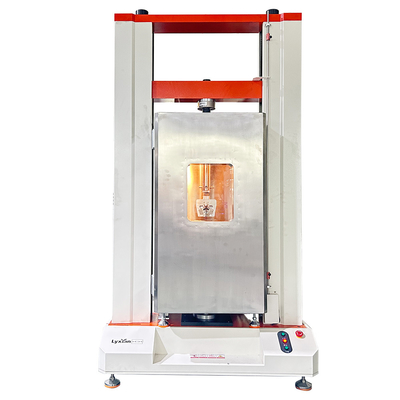

Large Image : High Temperature Computer Controlled Universal Tensile Machine With Test Oven For Metal Tensile Strength Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1009C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

High Temperature Computer Controlled Universal Tensile Machine With Test Oven For Metal Tensile Strength Testing Machine

Description

MODEL:	HZ-1009C	Sensor:	A United States High-precision Pull, Pressure Sensor
Tensile Strength Testeing Machine:	Tensile Strength	Tensile Strength Testeing Instrument:	For Metal
Power:	0.75KW	Certification:	ROHS/CE/ISO9001
Application:	Steel,copper,fiber,fabric,universal Tester	Effective Force Measurement Range:	Effective Force Measurement Range
Test Speed Range:	0.1～500mm/min	Test Machine Resolution:	Maximum Load 1 / 200000
Highlight:	Computer Controlled Universal Tensile Machine , High Temperature Universal Tensile Machine , Metal Tensile Strength Testing Machine

High Temperature Computer Controlled Universal Tensile Machine With Test Oven For Metal Tensile Strength Testing Machine

High-low temperature universal testing machine HZ-1009C manufacturers is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement. Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement.

Universal Testing Machine Main function:
Universal testing machine manufacturers HZ-1009C mainly applied to test the force of metallic and non-metallic materials in the high or low temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.

Universal Testing Machine Technical parameter:

Model	HZ-1009C (Model C represents this device with environment box)
Volume	10Ton	20Ton	30Ton
Sensor	Basic configuration	A United States high-precision pull, pressure sensor
	Extended configuration	The equipment can meet a machine with multiple sensors, to meet the large disparity test
Accuracy class	Level 0.5 (national standard and high standard level)
Effective force measurement range	0.4%~100% (refers to the valid force measurement range segment)
Test machine resolution	Maximum load 1 / 200000, inside and outside is not divided, and the whole resolution is unchanged
Valid test width	Standard width of 650mm (excluding ambient box)	Can be customized according to customer needs widened
Effective stretch space	No fixture trip 1000mm	Can be customized according to customer demand to increase
	The actual itinerary varies with the fixture
Test speed range	0.1～500mm/min
Displacement measurement accuracy	± within 0.2% of the indicating value

Application Industry

Extensive used in measurement and quality inspection, clothing and shoes; rubber and plastics; metallurgy and steel; machinery manufacturing; electronics and electrical appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instruments; medical equipment; civil nuclear energy; civil aviation; universities; scientific research, arbitration and technical supervision department; building materials and ceramics; petrochemical; other industries.

Tag:

Contact Person: liang

Tel: 8613711888650

Fax: 86--13827265866
