Universal Test Machine Oil Drum Compressive Strength Testing Machine Equipment Max Load Capacity Up To 20 KN Accuracy 0.5 Grade

Large Image : Universal Test Machine Oil Drum Compressive Strength Testing Machine Equipment Max Load Capacity Up To 20 KN Accuracy 0.5 Grade

Product Details:

Place of Origin:	CHINA
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1003A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wooden
Delivery Time:	7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500hundred sets per month

Contact Now

Universal Test Machine Oil Drum Compressive Strength Testing Machine Equipment Max Load Capacity Up To 20 KN Accuracy 0.5 Grade

Description

Control Mode:	From 0.4% To 100%	Power:	750W(depending On Different Demand Of Force, Using Different Motor)
Accurate Grade:	0.5 Grade	Testing Speed:	From 0.01 To 500mm/min,
Drive System:	Taiwan “Delta” AC Servo Motor	Safety:	Overload 10%, Automatic Protection
Usage:	Oil Drum Compressive Strength Testing Machine	Key Words:	Compressive Strength Testing Machine
Data Sampling Frequency:	200times/sec	Max Load Capacity:	Up To 20 KN
Grip:	Compressive Grip	Servicr:	OEM ODM
Highlight:	Oil Drum Universal Test Machine , Accuracy 0.5 Grade Universal Test Machine , 20 kN Universal Test Machine

Universal Test Machine Oil Drum Compressive Strength Testing Machine Equipment Max Load Capacity Up To 20 KN Accuracy 0.5 Grade

Universal Testing Machine

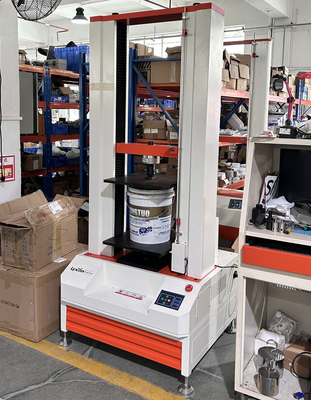

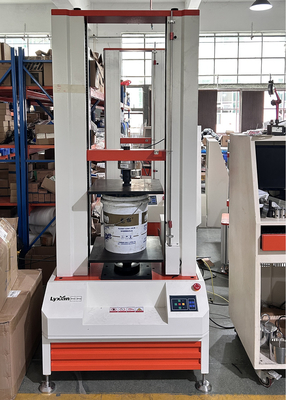

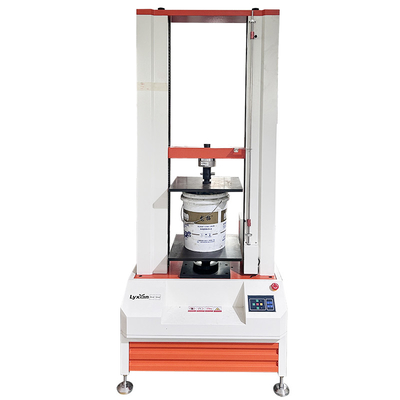

Computer-type servo Oil drum compressive testing machine is combining electronic technology and mechanical transmission. It has a broad and accurate load speed and measurement range, high accuracy and sensitivity for the measurement and control of load and displacement, and can also carry out equal speed loading and displacement automatic control test.With simple and convenient operation, especially suitable for the production line to control the product quality of testing instruments.This series of models is mainly suitable for the test load of less than 20KN

Universal Testing Machine Specification

Model Number	HZ-1003A
Accuracy	0.5 grade
Certification	ISO/ASTM/CE
Maximum load	20KN
Accuracy	≤0.5%
Resolution of force	1/200000
Drive system	Taiwan “Delta” AC servo motor +drive+High precision ball screw
Fixture	One set of standard tensile grip
Accuracy of extensometer	≤0.5%
Effective displacement	800mm(can be enlarge as client request)
Testing width	390mm(can be enlarge as customer request)
Overload protection	Overload 10%, automatic protection

Computer Type Universal Testing Machine HZ-1003A.p...

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 25 year.
