Footwear Testing Machine National Standard Shoes Abrasion Testing Machine Load 4.9N Adjustable Abrasive Wheel Speed 100-300r/Min

Large Image : Footwear Testing Machine National Standard Shoes Abrasion Testing Machine Load 4.9N Adjustable Abrasive Wheel Speed 100-300r/Min

Product Details:

Place of Origin:	China
Brand Name:	Lixian
Certification:	CE, ISO
Model Number:	HZ-3602

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Contact Now

Footwear Testing Machine National Standard Shoes Abrasion Testing Machine Load 4.9N Adjustable Abrasive Wheel Speed 100-300r/Min

Description

Model:	HZ-3604	Abrasive Wheel Speed:	100-300r/min Adjustable
Load:	4.9N (specific Request Can Adjust Below 19.6N)	Balance Range:	5000g, Accuracy 5g
Fluctuation Of Speed:	≤±5 Rot/min	Timing Shutdown Range:	1sec To 99 H, Adjustable At Every Second
Testing Speed:	1 To 9999 Rot/min	Weight:	80kg
Highlight:	National Standard Shoes Abrasion Testing Machine , 4.9N Shoes Abrasion Testing Machine

Footwear Testing Machine National Standard Shoes Abrasion Testing Machine Load 4.9N Adjustable Abrasive Wheel Speed 100-300r/Min

Shoes Abrasion Testing Machine Equipment summary:

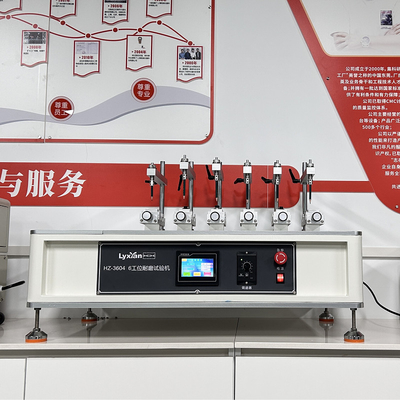

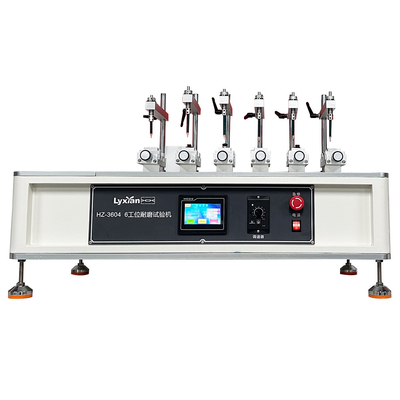

HZ-3604 National standard shoes abrasion tester is mainly doing abrasion test for the rubber soles, TPR soles, PU soles and plastic shoes. Testing wear resistance of finished shoes.

Main function:

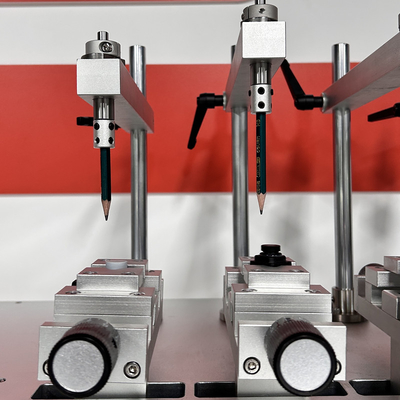

The principle is to press the rotating grinding wheel vertically on the sample, perform abrasion test on the sample at a certain load, speed and time, and measure the length of the test wear mark.

Shoes Abrasion Testing Machine Technical parameters:

Model	HZ-3604 National Standard Shoes Abrasion Testing Machine
Abrasive wheel spe	Dia 20±0.1, thick 4±0.1mm, T12 steel wheel with 72 teeth teeth angle 90°±5°,teel width 0.2±0.05mm,teeth tip roughness Ra=3.2um,hardness HRC≥55,coaxial degree 0.03mm
Abrasive wheel speed	100-300r/min adjustable
Load	4.9N (specific request can adjust below 19.6N)
Balance range	5000g, accuracy 5g
Fluctuation of speed	≤±5 rot/min
Timing shutdown range	1sec to 99 H, adjustable at every second
Testing speed	1 to 9999 rot/min
Timer	1 sec to 99 H
specimen	Thickness ≥6mm
size	600×500×700(mm)
Weight	About 80kg
