Computer Type Carton Package Resist Compression Testing Machine Equipment Capacity 500kg,1 Ton, 2 Ton, 5ton AC Servo Motor Driver

Large Image : Computer Type Carton Package Resist Compression Testing Machine Equipment Capacity 500kg,1 Ton, 2 Ton, 5ton AC Servo Motor Driver

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-6001b

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

Computer Type Carton Package Resist Compression Testing Machine Equipment Capacity 500kg,1 Ton, 2 Ton, 5ton AC Servo Motor Driver

Description

MODEL:	HZ-6001B	Power:	1PHASE, AC 220V, 5A
Capacity:	500kg,1 Ton, 2 Ton, 5ton	Resolution:	1/50,000
Accuracy:	±1%	Compression Space:	100100100cm (or Customized)
Motor:	AC Servo Motor + Driver	Test Speed:	12-350mm/min
Protector:	Leakage Protection, Overload Auto-shutdown, Displacement Limit Protection
Highlight:	2 Ton Resist Compression Testing Machine , Resist Compression Testing Machine , 500kg Resist Compression Testing Machine

Computer Type Carton Package Resist Compression Testing Machine Equipment Capacity 500kg,1 Ton, 2 Ton, 5ton AC Servo Motor Driver

Computer type carton/package resist compression test machine is used to test compressive strength of cartons, containers and other packaging structure, adopts dynamic holding pressure technology, simulates stacking the test of pile, in order to know the compressive strength and impact-resistant capacity of product packaging during transportation and stacking , This machine adopts Load Cell Sensor, through computer analyse then it will directly displayed the resistance force on the screen through the computer. The test results can used as the reference for packaging design.

Applicable of Carton Compression Test Machine :
Its applicable to all factories and enterprises, technical supervision departments, the commodity inspection authorities, research institutes and other departments for testing and researching.

Main features of Carton Compression Test Machine :
1. Structure: uses the extruded aluminum boards type that through senior paint processing, Inside with the high-precision, low resistance and gapless double ball screw, improve the efficiency and rigid structure load.
2. Power system: used Taiwan "Delta" servo motor, stable transmission and low voice, the speed accuracy can control in ±0.2%.
3. Control system: HP computer + Lixian special Test Software, can set the parameter, working status control, data collection, analysis and process, display results and print test results.
4. This machine has stable and reliable performance, high measurement accuracy, the test software has strong function, easy to operate and handle.

Technical parameter:

Model	HZ -6001B
Units	kgf, Ibf, N, KN, kPa, MPa
Capacity	500kg,1 ton, 2 ton, 5ton
Resolution	1/50,000
Accuracy	±1%
Compression space	100100100cm (or customized)
Motor	AC Servo Motor + Driver
Test speed	12-350mm/min
Protector	Leakage protection, overload auto-shutdown, displacement limit protection
Volume	153121180cm
Power	1PHASE, AC 220V, 5A

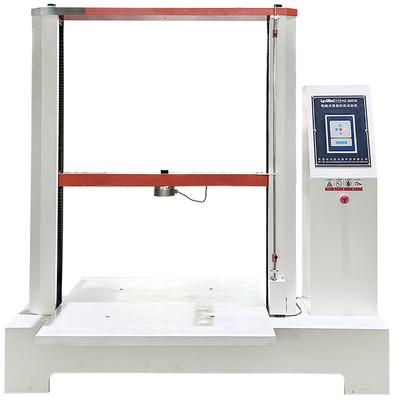

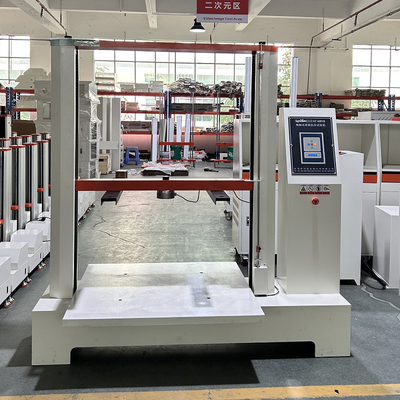

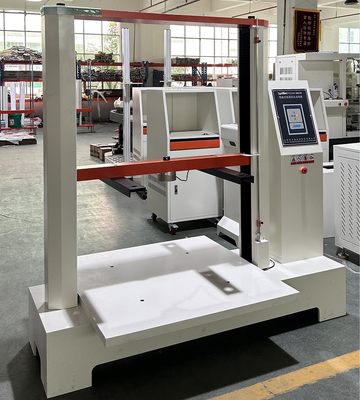

Pictures for reference:
