Vertical Dynamic Balancing Test Equipment With Drill Press Weight Reduction Spindle Bearing NSK Balance Speed 700r/min 100 KG Max Load

Large Image : Vertical Dynamic Balancing Test Equipment With Drill Press Weight Reduction Spindle Bearing NSK Balance Speed 700r/min 100 KG Max Load

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	ce
Model Number:	HZ-97L100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1000~6000/per set
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Vertical Dynamic Balancing Test Equipment With Drill Press Weight Reduction Spindle Bearing NSK Balance Speed 700r/min 100 KG Max Load

Description

Max Mass Of Workpiece(kg):	100KG	Max Diameter Of Workpiece:	600mm
Measurement Method:	Single-sided	Balance Speed (r/min):	700r/min
Power:	2.2KW	Minimun Residual Unbalance:	≤5 G.mm/kg
Unbalance Reduction Rate (%):	URR≥90%	Spindle Bearing:	NSK
Highlight:	100 KG Dynamic Balancing Test Equipment , Vertical Dynamic Balancing Test Equipment , Drill Press Dynamic Balancing Test Equipment

Vertical Dynamic Balancing Test Equipment With Drill Press Weight Reduction Spindle bearing NSK Balance speed 700r/min 100 KG Max Load

Dynamic Balancing Machine Product Description

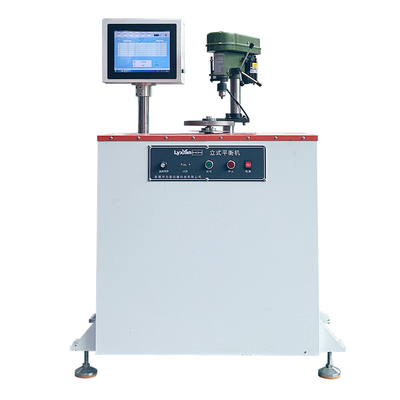

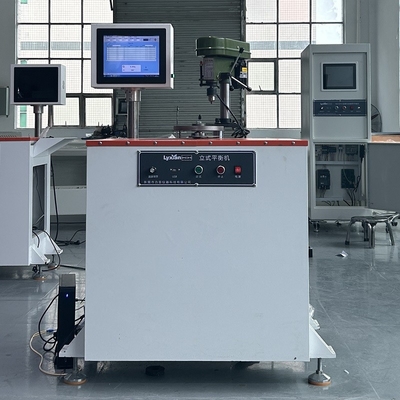

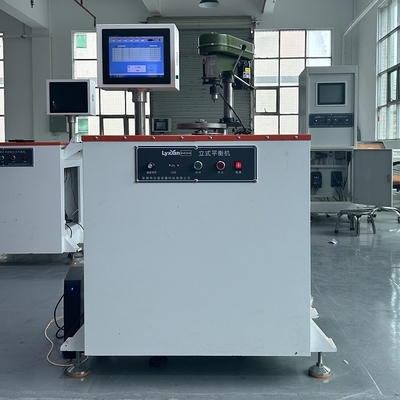

Hard Bearing Single-Sided Vertical Dynamic Balancing Machine is widely used in the balancing effect of disc workpieces such as water pump impellers, brake discs, saw blades, fans, pulleys, etc. The display part of this product is in the form of a 12.1-inch LCD screen. It not only has the characteristics of large measurement range, high efficiency, safe and simple operation, and intuitive display, but also occupies a leading position in the domestic balancing machine industry. Before operation, just set the radius data of the workpiece to be checked, and the unbalance amount and corresponding phase value of the workpiece can be correctly displayed at one start.

Dynamic Balancing Machine Measurement system
The measuring system is the core of the balancing machine. This system uses the latest CPU computing chip, and after signal amplification, filtering, analog-to-digital conversion, it performs calculations to display the measured data. It also has the output of database, communication data and control signals, including the connection of printers. The human-computer dialogue
interface is intuitive and simple to operate, and is suitable for the display mode of industrial production environments. After
strict multi-level component screening, large-scale electrical circuit manufacturing technology, and high and low temperature
aging tests, it can be suitable for accurate measurements of balancing machines in different environments.

Dynamic Balancing Machine Specification

Model Number	HZ-9705A
Max Mass of Workpiece(kg)	100KG
Max Diameter of Workpiece	600mm
Measurement method	Single-sided
Spindle bearing	NSK
Ceramic piezoelectric sensor	1 Set
Balance speed	700r/min
Motor Power	2.2 (kw)
Minimun residual unbalance	≤5 g.mm/kg
Unbalance reduction rate (%)	URR≥90%
