90° Rotation Fatigue Life Testing Machine Equipment For Monitor Stand 80-650 Mm Adjustable Height Distance Fixture Plate

Name: 90° Rotation Fatigue Life Testing Machine Equipment For Monitor Stand 80-650 Mm Adjustable Height Distance Fixture Plate
Brand: Dongguan Lixian Instrument Scientific Co.,LTD
SKU: HZ-5068
Price: Negotiable USD
Availability: InStock

All Products

Laboratory Testing Machines
(72)

Universal Testing Machine
(144)

Environmental Testing Machine
(102)

Dynamic Balancing Machine
(41)

Rubber Testing Machine
(83)

Automotive Testing Equipment
(14)

Plastic Lab Testing Equipment
(19)

Packaging Testing Instruments
(22)

Leather Testing Equipment
(17)

Textile Test Equipment
(22)

Footwear Testing Equipment
(13)

Helmet Testing Equipment
(13)

Mask Testing Equipment
(11)

Stroller Tester
(19)

Factory Air Conditioners
(11)

Wine Cellar Air Conditioners
(6)

Frequency Conversion Air Conditioner
(6)

Certification

I'm Online Chat Now

90° Rotation Fatigue Life Testing Machine Equipment For Monitor Stand 80-650 Mm Adjustable Height Distance Fixture Plate

Large Image : 90° Rotation Fatigue Life Testing Machine Equipment For Monitor Stand 80-650 Mm Adjustable Height Distance Fixture Plate

Product Details:

Place of Origin:	China
Brand Name:	Lixian
Certification:	CE, ISO
Model Number:	HZ-5068

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1000~6000/per set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

90° Rotation Fatigue Life Testing Machine Equipment For Monitor Stand 80-650 Mm Adjustable Height Distance Fixture Plate

Description

Applicable Industries:	Monitor Stand	Model:	HZ-5068
Product Name:	90° Rotation Fatigue Life Testing Machine	Machine Size:	1069101630 Mm (approx.)
Display Mode:	PLC	Testing Space:	Touch Screen Display
Front And Rear Adjustable Distance:	80 Mm	Power:	Input According To The Nameplate
Adjustable Height Distance Fixture Plate:	80-650 Mm	Rotation Direction:	90 Degree
Highlight:	Monitor Stand Fatigue Life Testing Machine , 90° Rotation Fatigue Life Testing Machine , 90° Rotation Fatigue Life Testing Equipment

90° Rotation Fatigue Life Testing Machine Equipment For Monitor Stand 80-650 mm Adjustable Height Distance Fixture Plate

90° Rotation Fatigue Life Testing Machine Product Description

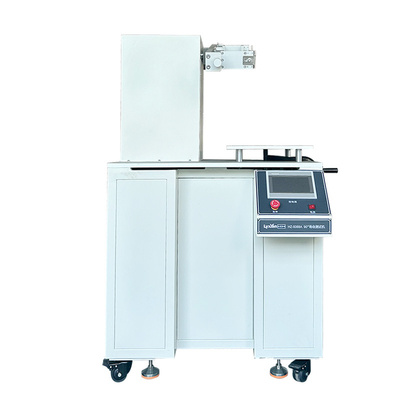

The machine is designed according to customer requirements and is mainly used for fatigue testing of display brackets with 90-degree rotation on the left and right sides. The machine consists of a sub-frame, a lifting workbench, and an arm that can swing left and right. The machine is rotated by an imported servo motor, which has a large output torque and accurate angle control. The lifting and lowering of the workbench is completed by the rotation of the screw mechanism.

90° Rotation Fatigue Life Testing Machine Specification

Model Number	HZ-5068
Product name	90° Rotation Fatigue Life Testing Machine
Machine size	1069101630 mm (approx.)
Control mode	PLC

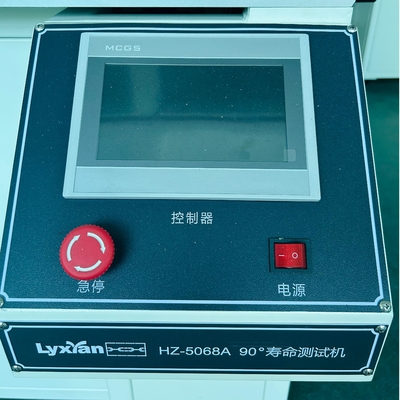

Display mode	touch screen display
Power supply voltage	input according to the nameplate
lifting and lowering of the workbench	80 mm
Adjustable height of fixture plate	80-650 mm
Applicable Industries	Monitor Stand
Rotation direction	90 degree

90° Rotation Fatigue Life Testing Machine Equipment For Monitor Stand 80-650 Mm Adjustable Height Distance Fixture Plate 0

90° Rotation Fatigue Life Testing Machine Equipment For Monitor Stand 80-650 Mm Adjustable Height Distance Fixture Plate 1
