Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min

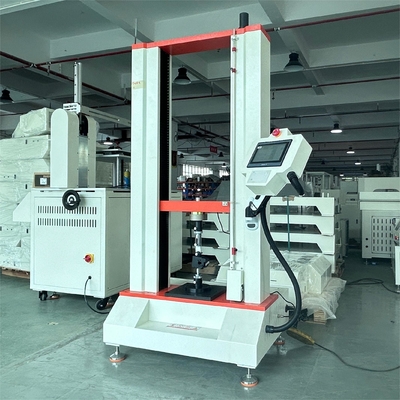

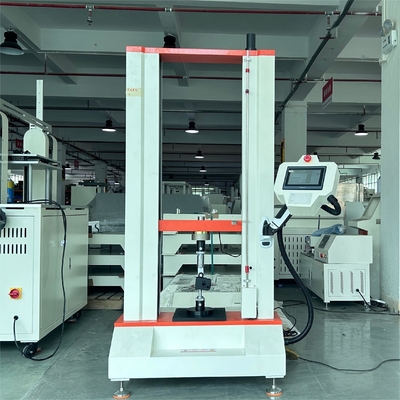

Large Image : Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1010A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min

Description

Max Load:	2ton	Accuracy:	0.5grade
Effective Force Range:	0.4％～100％ (0.5grade)	Effective Test Width:	390mm (can Be Enlarge As Customer Request)
Resolution:	1/200000	Power:	400W
Machine Size:	12005301800mm(length * Width * Height)	Warranty:	1 Year
Model:	HZ-1010A	Application:	Motor Plastic Shell Stretching
Highlight:	2ton Capacity Universal Tensile Test Machine , Plastic Shell Universal Tensile Test Machine , Servo Motor Universal Tensile Test Machine

Universal Tensile Test Machine Servo Motor Plastic Shell UTM 2ton Capacity Testing Speed 50~300 Mm/Min

Tensile Test Machine Equipment Summary:

Motor plastic shell tensile strength testing machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive , computer and color inkjet printer. it has accurate load speed,range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. Floor-standing models, it is taken account of modern industrial design.

Tensile Test Machine Specification

Model Number	HZ-1010A
Application	Motor plastic shell
Maximum load	2 ton
accuracy of load measurement	the load cell + HZ-2000 screen ± 0.5%(full range of 5% -100%)
Resolution	1 / 50000
displacement resolution	0.001mm
power system	AC motor,deceleration device(fromItaly)
displacement	400, 500, 600mm (or customize)
Range of testing speed	50~300 mm/min
Accruacy of displacement measurement	Tolerance: ±0.5%/ tolerance: ±0.2%
Data sampling frequency	200 times/sec

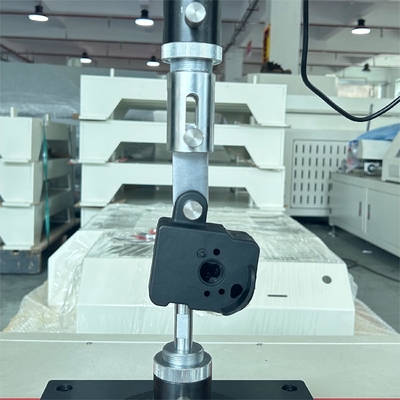

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 25year.

Recommend Products

Universal testing machine, a material testing machine integrating tensile, bending, compression, shearing, ring stiffness and other functions. It is mainly used for the mechanical performance testing of metal and non-metal materials. It is used in industrial and mining enterprises, scientific research units, colleges and universities, engineering Ideal testing equipment for quality supervision stations and other departments.
