Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring

Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring
Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring

Large Image :  Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-1006
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month

Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring

Description
Test Standard: ISO 9969 Model: HZ-1006
Accuracy: 0.5 Grade Test Width: 600mm
Range Of Testing Speed: 0.001-100mm/min(197inches/min) Effective Tensile Stroke: 2000mm
Measuring Accuracy:: The Value ±0.5% Maximum Load: 300KN
Power: 3 Phase 380V 50/60Hz Usage: Pipe Ring Stiffness Testing Machine Equipment
Highlight:

300kn Stiffness Testing Machine

,

ISO 9969 Stiffness Testing Machine

,

FRP Pipe stiffness testing machine

Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP/GRP/GRE Pipe Ring

UTM Equipment summary:

Ring stiffness test machine is widely used in the determination of thermoplastic pipe and FRP pipe with annular cross section, which meets the requirements of PE double arm bellows, winding pipe and various pipe standards, and can complete the test of pipe ring stiffness, ring flexibility, flat, weld stretch and so on. It has key speed regulation, test force shift digital display, and has automatic protection functions of peak maintenance, damage automatic shutdown, over-current and overload.


Test Standard
ISO 9969 "Thermoplastics pipes -- Determination of ring stiffness”
ISO9967 "Thermoplastics pipes -- Determination of creep ratio“

Main Feature
1. This machine is meets the requirements of PE double arm bellows, winding pipe and various pipe standards, and can complete the test of pipe ring stiffness, ring flexibility, flat, weld stretch etc.The machine adopts four-column frame type double space structure; pull up and press down
2. The speed regulation system adopts servo speed regulation system and servo motor, the performance is stable and reliable, with overcurrent, overvoltage and overload mechanical protection device.
3. The transmission part adopts circular arc synchronous tooth belt, precision ball screw secondary transmission, smooth transmission, low noise, high transmission efficiency.
4. The universal joint adopts the cross pin structure, and has the function of pendulum angle limit, on the one hand, it is easy to clamp the sample, to ensure that the test is concentricdegree, on the other hand, eliminates the effect of irregular samples on the sensor.
5. Equipped with a special ring stiffness deformation measurement device to make the deformation results more accurate.
6. The three models are suitable for the pipe diameter below φ1000mm, φ2000mm and φ3000mm.

UTM Specification

Model Number
HZ-1006
Product name
Pipe Ring Stiffness Testing Machine Equipment
Maximum load
300KN
Induction method
Precision load cell
Force Resolution/Accuracy:
±0.5%
Accuracy class :
0.5
Resolution:
1/1,000,000
Test width
600mm
Speed range
0.001-100mm/min(197inches/min)
Test stroke
2000mm
Power supply
3 phase 380V 50/60HZ

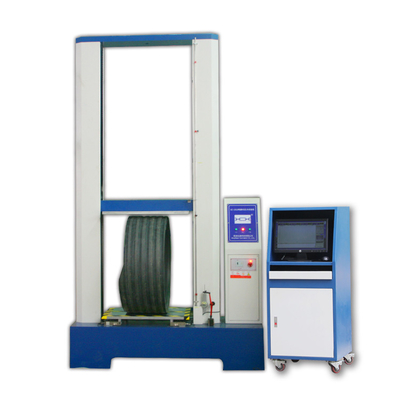

Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring 0

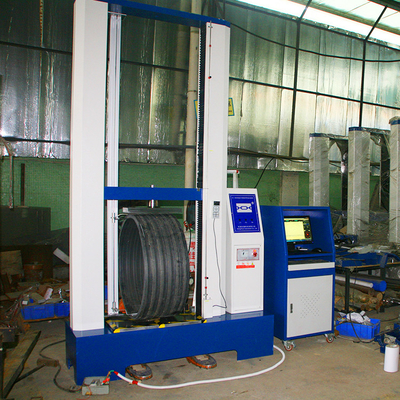

Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring 1

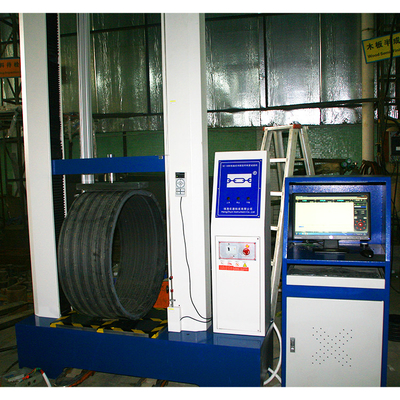

Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring 2

UTM Fixture
Stiffness Testing Machine Equipment Meeting ISO 9969 Standard 300kn Max Load For FRP / GRP / GRE Pipe Ring 3

UTM grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. UTM grips fixture is an indispensable part of electronic universal testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. UTM grips fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides UTM grips customized services to customers around the world and export UTM for 24 year.
