Hydraulic Concrete Compression Strength Test Equipment Level 1 Accuracy Computer Type Max Load 2000 kN

Large Image : Hydraulic Concrete Compression Strength Test Equipment Level 1 Accuracy Computer Type Max Load 2000 kN

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-022

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	4800~8800$
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per month

Contact Now

Hydraulic Concrete Compression Strength Test Equipment Level 1 Accuracy Computer Type Max Load 2000 kN

Description

Certification:	CE/ISO/ASTM/ROSH	Model:	HZ-022
Test Force Measuring Range:	2%-100%FS	Displacement Resolution:	0.01mm
Test Force Resolution:	1/500000	Testing Machine Effective Width:	650mm
Accuracy:	Level 1	Maximum Load:	2000KN
Weight:	About 1800Kg	Usage:	Concrete Hydraulic Compression Strength Test Equipment
Highlight:	Hydraulic Concrete Compression Strength Test Equipment , Computer Hydraulic Concrete Compression Testing Machine , 2000 kN Hydraulic Concrete Compression Testing Machine

Hydraulic Concrete Compression Strength Test Equipment Level 1 Accuracy Computer Type Max Load 2000 kN

UTM Equipment summary:

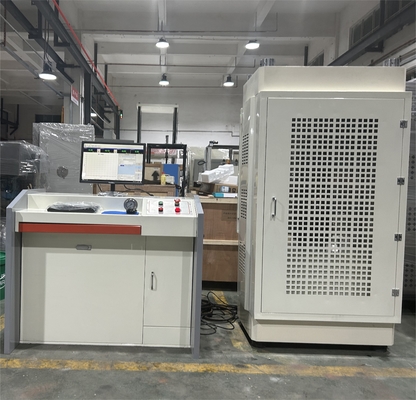

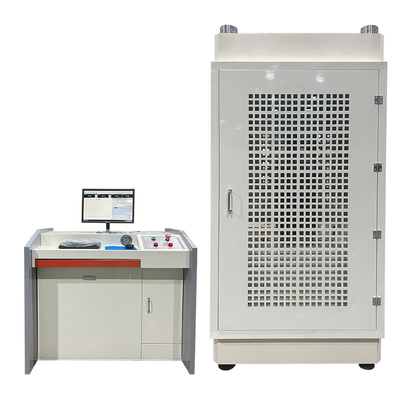

The working cylinder of this Concrete Compression Strength Test Equipment adopts the bottom type, oil pressure loading, sensor force measurement, computer display of force value, computer adjustment of loading speed. It is easy to operate, stable in performance, safe and reliable. The Concrete Compression Strength Test Equipment consists of two independent parts, the main machine and the press, and the control system adopts advanced software.

UTM Specification

Model Number	HZ-022
Test force measuring range	2%~100%FS
Max load	2000kN
Testing accuracy	Level 1
Testing force indication error	≤±1%
Displacement resolution	0.01mm
Workbench rising speed (mm/min)	1~50mm/min
Piston travel range	200mm
Testing machine effective width	650mm
Testing force resolution	1/500000
Power supply	380V

Hydraulic Concrete Compression Strength Test Equipment Level 1 Accuracy Computer Type Max Load 2000 kN 0

Hydraulic Concrete Compression Strength Test Equipment Level 1 Accuracy Computer Type Max Load 2000 kN 1
