Falling Ball Rebound Resilience Tester Equipment Meeting Standard Iso8307 Test Data Can Be Printed LCD Display

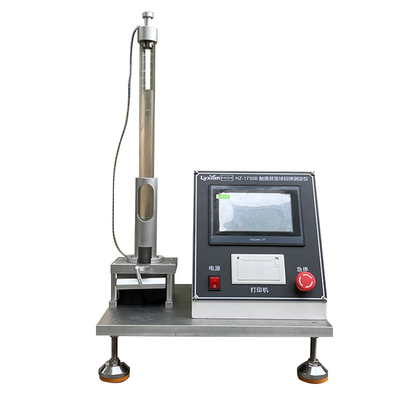

Large Image : Falling Ball Rebound Resilience Tester Equipment Meeting Standard Iso8307 Test Data Can Be Printed LCD Display

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1730

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	330~3580$
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per month

Contact Now

Falling Ball Rebound Resilience Tester Equipment Meeting Standard Iso8307 Test Data Can Be Printed LCD Display

Description

Standard:	ISO8307	Model:	HZ-1730
Product Name:	Falling Ball Rebound Resilience Tester Equipment	Steel Ball Falling From:	500±0.5%mm(American Standard)
Ball Diameter:	16±0.05 Mm	Precision Ball Drop Resilience:	<1.5%
Sample Size:	100 Mm(L) 100 Mm(W) 50mm(H)	Display:	LCD
Test Data:	Can Be Printed	The Average Rebound Debugging:	Automatic Calculation
Highlight:	Iso8307 Falling Ball Rebound Resilience Tester , Falling Ball Rebound Resilience Tester Equipment , LCD Display Ball Rebound Resilience Tester

Falling Ball Rebound Resilience Tester Equipment Meeting Standard Iso8307 Test Data Can Be Printed LCD Display

Resilience Tester equipment Equipment summary:

ISO8307 Falling ball rebound Resilience Tester equipment is applicable to the determination of flexible polyurethane foam rebound performance off the ball. The instrument by the quality of a given ball diameter and height of free fall in the provisions of foam samples, the calculation of the maximum ball height and ball rebound height ratio of the Percentage drop, that resilience to rebound said foam rebound performance.

his machine uses microprocessor control,LCD Chinese display, and can print the test data. This machine has the use of
safe,reliable, measurement accuracy.Double-quick slicing machine for cutting Rubber Research Institute of plasticity of the specimen, from 16 ring knives and two 100 single-edged knife cutting round 10mm diameter, 16mm thick standard sample, without replacement of tools, easy operation, appearance and internal structure have been re-designed to make the performance more reliable, more beautiful shape for the domestic new improved plasticity sample.

Resilience Tester equipment Main Feature:

1. 500mm samples can make the U.S. standard. (National standard of similar products can only do 460 samples)

2, LCD screen, the Chinese showed the same time increase the service life, easy to understand, technicians can quickly grasp the method of operation. (Similar products for the digital display, digital display only) 3, With printing, with printers. (Similar products without printing)

The Main Configuration And Accessories:

Host set (which includes the release of bodies to capture body height adjusting mechanism)
A set of electro-optical distance sensor Control box set (LCD display)

A micro-printer (desktop)

Resilience Tester equipment Specification

Model Number	ZME-1730
Product name	Falling ball rebound Resilience Tester equipment
standard	ISO8307
Steel ball falling from	500±0.5%mm(American standard)
Ball diameter	16±0.05 mm
Precision ball drop resilience	<1.5%
Sample size	100 mm(L) 100 mm(W) 50mm(H)
display	LCD
test data	can be printed
the average rebound debugging	Automatic calculation
