Product Details:
|
Tensile Strength Testeing Equipment: | 0.001N | Application: | Fabric,universal Tester |
---|---|---|---|
Tensile Strength Testeing Instrument: | For Fabric | Warranty: | 1 Year |
Tensile Strength Testeing Machine: | Tensile Strength | Power: | 400W(depending On Different Demand Of Force Using Different Motor) |
Max. Load: | 5KN | MODEL: | HZ-1004B |
Usage: | Tensile Testing Machine,WOVEN Tensile Tester | Effective Measuring Range: | 0.4%~100% |
Accurate Grade: | 0.5 Grade | Safety: | Overload, Emergency Stop Devices |
Highlight: | 500kg Universal Tester,Computer Tensile Force Testing Machine,Woven Tape Universal Tester |
Tensile Testing Machine Equipment summary

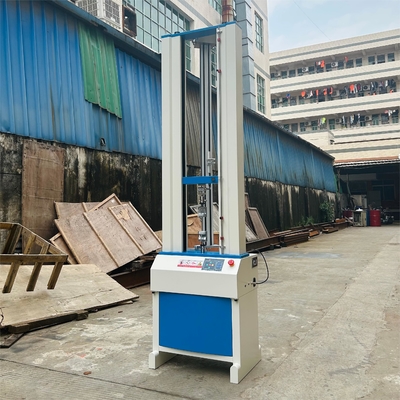

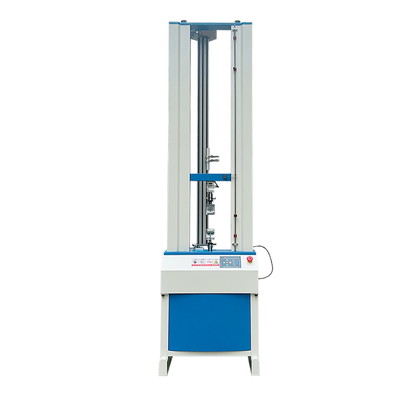

Computer Servo Type Woven tape tensile Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 5KN.
Model Number | HZ-1004A |
Certification | ISO/ASTM/CE |
Max. load
|
5KN |
Accurate grade | 0.5 grade |
Effective measuring range
|
0.2%~100%/0.4%~100%
|
Tensile Testing Machine accuracy | the value ±1%/ the value ±0.5% |
Tensile Testing Machine resolution
|
Max. load 1/200000 |
Effective testing width | 300mm |
Tensile Testing Machine Speed | 0.5~500mm/min |
Effective Tensile Stroke
|
900mm
|
.
