Gas Permeability Tester Equipment For Test Plastic Film Meeting Standard ASTM D1434 Vacuum Accuracy 0.1Pa

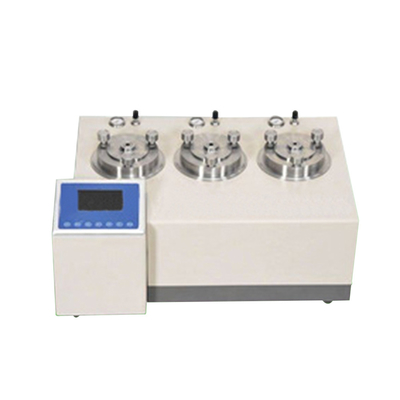

Large Image : Gas Permeability Tester Equipment For Test Plastic Film Meeting Standard ASTM D1434 Vacuum Accuracy 0.1Pa

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-7078

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1000~8000/per set
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Gas Permeability Tester Equipment For Test Plastic Film Meeting Standard ASTM D1434 Vacuum Accuracy 0.1Pa

Description

Model:	7078	Product Name:	Gas Permeability Tester
Measurement Accuracy:	0.01cm3/m2 /day / 0.1MPa	Temperature Range:	5 ~ 50 (standard Temperature Of 23 )
Temperature Accuracy:	Plusmn; 0.01	Humidity Range:	0% RH (5 ~ 100% RH Optional
Wet Control Accuracy:	Plusmn; 2% RH	Vacuum Accuracy:	0.1Pa
Test Pressure:	-0.1Mpa ~ +0.1 Mpa	Test Gas:	O2, CO2, N2 And Other Gases
Highlight:	ASTM D1434 Gas Permeability Tester , Vacuum Accuracy Gas Permeability Tester , Plastic Film Gas Permeability Tester

Rubber Arc Resistance Performance Tester Equipment For Plastics, Films, Resins Test Voltage Ac 0 To 20 Kv

Gas Permeation Tester Equipment summary:

It adopts the principle of the pressure difference to measure the permeability of gas. Gas Permeation Analyzer, model N530 is for the detection of gas permeability of various films, infusion bags and other packaging materials for O2, CO2, N2 and other gases through the barrier properties. It is designed and manufactured according to the standards of ISO 2556-2001, ISO15105-1, ASTM D1434-82 (2003), YBB00082003. It has three independent testingchambers and independent temperature control system. The core is connected with computer through the USB. It can automatically judge and stop testing.The testing result is stable, curves of permeability, temperature, pressure will be shown at the same time. The test report will generate automatically while the data automatically stored. It also support TCP/IP protocol. There are three measuring range that can be enlarged.

Gas Permeation Tester Test principle
N 530 Gas Permeation Analyzer designed using the principle of differential pressure method, preperation samples will be placed between in the test chamber with high / low pressure, and clamping it, then make the whole test system to have a vacuum processed, input test gas the high-pressure test chamber to ensure on both sides of the test samples have a constant pressure, the gas under the role of pressure pass through film from high-pressure chamber to the low pressure chamber to infiltrate, observe the changes pressure in low-pressure chamber to caculate barrier parameters of the sample.

Gas Permeation Tester Specification

Model	HZ-7078
Product name	Plastic Film gas permeability tester Equipment
Measurement Accuracy	0.01cm3/m2 /day / 0.1MPa
Temperature range	5 ~ 50 (standard temperature of 23 )
Temperature Accuracy	plusmn; 0.01
Humidity Range	0% RH (5 ~ 100% RH optional
Wet control accuracy	plusmn; 2% RH
Vacuum accuracy	0.1Pa
Test pressure	-0.1Mpa ~ +0.1 Mpa
Test gas	O2, CO2, N2 and other gases

Gas Permeability Tester Equipment For Test Plastic Film Meeting Standard ASTM D1434 Vacuum Accuracy 0.1Pa 0
