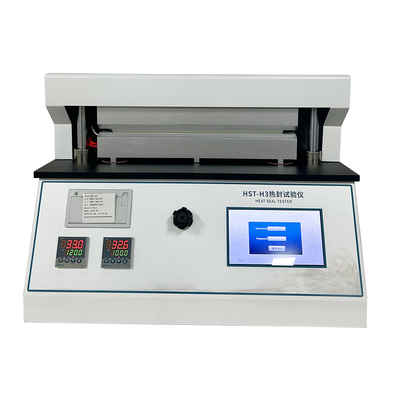

Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003

Large Image : Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-HST-H3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 3000~30000/per set
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003

Description

Model:	HZ-HST-H3	Product Name:	Rubber Small Mold Hot Press Machine Equipment
Dimensions:	305 Mm (L) * 550 Mm (B)* 421 Mm (H)	Heat Sealing Temperature:	Room Temperature ~ 300℃
Temperature Control Accuracy:	±0.2℃	Heat Sealing Time:	0.1 ~ 999.9s
Heat Sealing Pressure:	0.05 MPa ~ 0.7 MPa	Heat Sealing Surface:	330 Mm *10 Mm (customizable)
Heating Form:	Double Heating (single Heating Optional)	Air Source Pressure:	0.05 MPa ~ 0.7MPa
Highlight:	Plastic Film Heat Seal Tester Equipment , ASTM F2029 Heat Seal Tester , Plastic Film Heat Seal Tester

Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029, YBB 00122003

Heat Seal Tester Equipment summary:

heat sealing tester is suitable for testing plastic films, flexible packaging composite films and other materials to accurately measure parameters such as heat sealing temperature, heat sealing time and heat sealing pressure.Using the hot pressure sealing method, the sample to be sealed is placed between the upper and lower heat sealing heads, and the sample is sealed under the preset temperature, pressure, and time. After repeated trials, it provides guidance for users to find suitable heat sealing parameters.

The instrument complies with multiple national and international standards: QB/T 2358, ASTM F2029, YBB 00122003

Heat Seal Tester Product features1.7-inch high-definition LCD touch screen, more intuitive content, more convenient operation 2. "fixed temperature micro-control" system, higher temperature control accuracy 3.Downward cylinder synchronization circuit to ensure pressure balance 4.Aluminum-filled heat sealing head ensures uniform heating of the heat sealing surface 5.Independent temperature control of upper and lower heat sealing heads, extra-long heat sealing surface design to meet the needs of different customers 6.Dual modes of manual and foot switches, humanized structural design 7.Anti-scalding design and leakage protection design, safer operation 8.Micro printer, which can conveniently print test results
Heat Seal Tester Basic application
Film material smooth surface
Applicable to heat seal test of various plastic films, plastic composite films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foil, aluminum foil composite films and other film materials. The heat seal surface is a smooth surface, and the heat seal width can be designed according to user needs
Film material patterned surface
Applicable to heat seal test of various plastic films, plastic composite films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foil, aluminum foil composite films and other film materials. The heat seal surface can be designed according to user needs

Extended application Customizable heat seal test of jelly cups, plastic hoses, yogurt cups, instant noodle bowls, atmosphere-controlled fresh-keeping boxes, self-supporting bags and other materials

Specification

Model Number	HZ-HST-H3
Dimensions	305 mm (L) * 550 mm (B)* 421 mm (H)
Heat sealing temperature	Room temperature ~ 300℃
Temperature control accuracy	±0.2℃
Heat sealing time	0.1 ~ 999.9s
Heat sealing pressure	0.05 MPa ~ 0.7 MPa
Heat sealing surface	330 mm *10 mm (customizable)
Heating form	Double heating (single heating optional)
Air source pressure	0.05 MPa ~ 0.7MPa
Power supply	AC 220 V 50 Hz
Net weight	40 kg

Heat Seal Tester Equipment For Plastic Film Room Temperature To 300℃ Standards ASTM F2029 YBB 00122003 0
