Rubber Precision Preformer Barrel Inside Diameter 300mm Cutter Speed 35~300r/Min Single Feeding Volume 100L

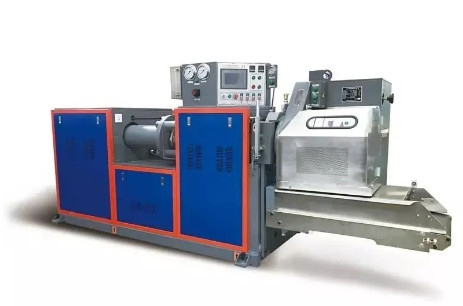

Large Image : Rubber Precision Preformer Barrel Inside Diameter 300mm Cutter Speed 35~300r/Min Single Feeding Volume 100L

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-7059

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 3000~30000/per set
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Rubber Precision Preformer Barrel Inside Diameter 300mm Cutter Speed 35~300r/Min Single Feeding Volume 100L

Description

Model:	7059	Product Name:	Rubber Precision Preformer
Total Power Kweed:	21.6kw	Barrel Inside Diameter:	300mm
Max. Extruding Pressure:	17mpa	Max. Barrel Temperature:	95℃
Max. Die Diameter:	300mm	Rubber Blank Weight Accuracy:	≤±1.0%
Single Feeding Volume:	100L	Cutter Speed:	35~300r/mi N
Highlight:	100L Rubber Precision Performer Barrel , 35~300r/Min Rubber Precision Performer Barrel , 300mm Rubber Precision Performer Barrel

Rubber Precision Preformer Barrel Inside Diameter 300mm Cutter Speed 35~300r/Min Single Feeding Volume 100L

The Precision Preformer Equipment summary:

The Precision Preformer is a type of rubber blank manufacturing equipment with high efficiency and high accuracy. This machine can process a wide range of rubber material, and is able to extrude rubber blanks of ring, rectangle, strip and odd shapes. It is especially suitable to produce sealing members, oil seal, tyre valves, bottle closures, tennis balls and shoe soles, etc. It integrates a variety of different functions such as vacuuming, filtrating, extruding, cutting, weighing, counting, etc.
The Precision Preformer Features:
●PLC control system and touch screen operator interface. Color touch screen to input data and password protection. ●1000 products technics database available to connect anytime.
●Variable inverter controlled infinite speed regulation for cutter speed.

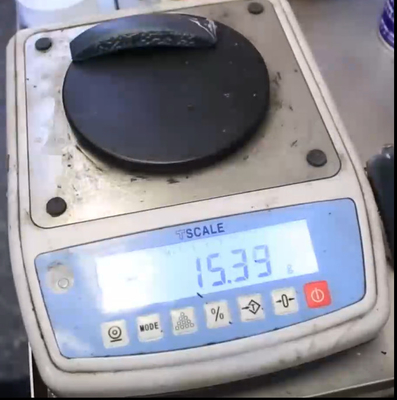

●Closed circuit feedback of electronic scale, one key automatic calibration of the weight of rubber blank.
●Reliable safety performance. There are interlocks when close ram head, the cutter rotates and ram moves forwards and retracts.
●Graphic and text display for failure point and cause
●Barrel adopts separated structure, Extended center, for easy cleaning.
●Reducing residual airin rubber blank by vacuum system.
●Stainless steel conveyer for reducing compound contamination.
●Alarm, barrel searchlight,cutting device seal structure, conveyor forward and backward rotation
●Accept high-end customization
●PLC control system and touch screen operator interface.
The Precision Preformer Specification

			Model

			HZ-7059

			Product name

			Rubber Precision Preformer

			Barrel inside diameter

			300mm

			Total power

			21.6KW

			Max. extruding pressure

			17mpa

			Max. barrel temperature

			95℃

			Max. die diameter

			300mm

			Single feeding volume

			100L

			Cutter speed

			35~300

			application

			rubber
