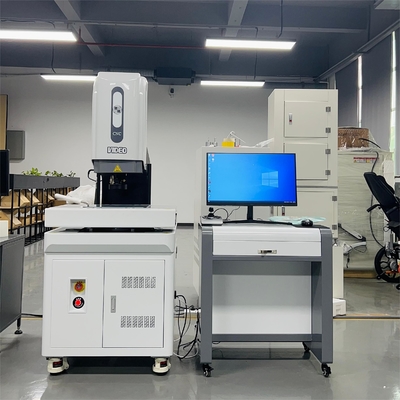

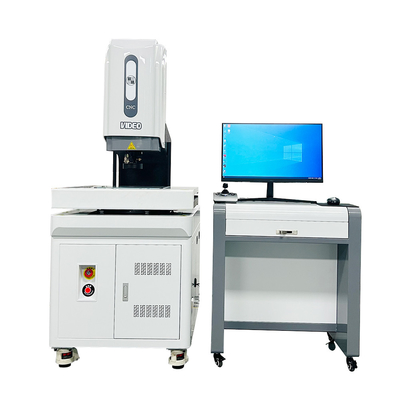

Second Imaging Measuring Instrument Equipment Summary:

This instrument is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used.

Second Imaging Measuring Instrument Main Fuction :

1, can be made into a product photographs and products to jpeg formats stored in computer form product library

2, and will be stored in computer photos in open and in real-time images of the same picture were compared

3, graphics, can input to AutoCAD become engineering drawings

4, AutoCAD standard engineering drawings can input real-time image, making AutoCAD engineering drawings and the actual shape overlap, comparing the workpiece so as to find out the difference between the workpiece and engineering drawings

5, can input previously photos stored jpeg image to real-time image with actual workpiece overlap contrast

6, a bird's eye view of the map in size to mark

Parameter

Second Imaging Measuring Instrument Components:

High-precision camera: used to capture high-quality images.
Optical system: includes lenses and light sources to optimize image clarity and contrast.
Image processing unit: includes hardware and software for pre-processing and analyzing captured images.
Measurement algorithm: built into the image processing software to extract measurement data from images.

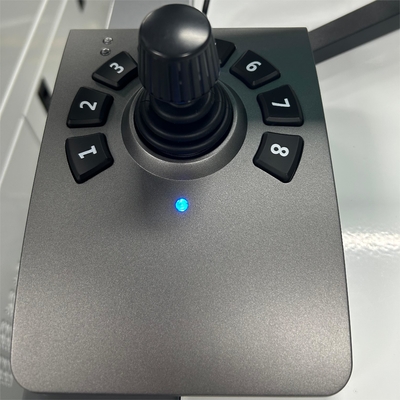

User interface: allows the operator to interact with the device, set parameters, view results, etc.
