Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

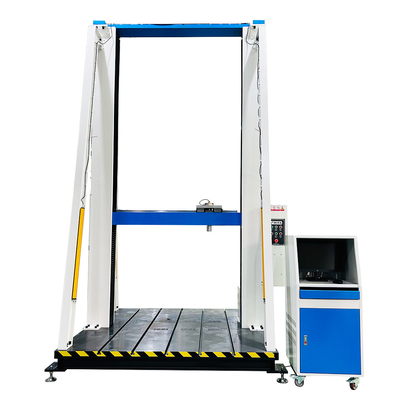

Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width

Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width
Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width

Large Image :  Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width

Product Details:
Place of Origin: CHINA
Brand Name: lixian
Certification: CE
Model Number: HZ-1009A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wooden
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500hundred sets per month

Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width

Description
Model Number: 1009A Capacity: 100kN
Safety System: EmergencyStop Effective Measuring Range: From 0.4% To 100%
Power Supply: AC 220V Accuracy: 0.5 Grade
Effective Testing Width: (according To Customers Requirement ) Tester Resolution: Max Load 1/200000, Constant The Resolution
Force Accuracy: Within ±0.5% Warranty: 12 Month
Highlight:

Customized Universal Test Machine

,

100kn Universal Test Machine

,

Metal Universal Test Machine

Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width

Universal Test Machine Equipment Summary:
Universal tensile test machine is a new material testing machine that combined with the electronic technology and mechanical transmission.it has accurate load speed, range of force measurement, Has high accuracy and sensitivity forthe load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the metal rod materials which load is less than 10ton.


Universal Test Machine Specification
Model Number
HZ-1009A
Certification
ISO/ASTM/CE
Maximum load
100 KN
Effective measuring range
 from 0.4% to 100%
Accuracy
0.5 grade
Measuring accuracy
the value±0.5%
Tester resolution
Max load 1/200000, constant the resolution
Effective testing width
(according to customers requirement )
Effective tensile space
400, 500, 600mm (according to customers requirement)
Testing speed
From 0.001 to 500mm/min



Universal Test Machine can be applied to test lots of materials in rubber tensile elongation, compression, tear, big size peel (can 90 degrees and 180 degrees) and other mid-force mechanical test(100KN), such as tires, belt, shoes, plastic,film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.
Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width 0
Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width 1

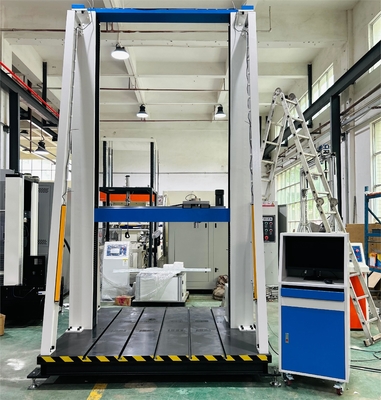

Universal Test Machine Fixture&Test
Universal Test Machine Tensile Strength Tester Equipment For Steel Metal 100kn Capacity Customized Testing Width 2
