Product Details:
Place of Origin: CHINA
Brand Name: lixian
Certification: CE
Model Number: HZ-1003E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wooden
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 hundred sets per month

Lab Testing Machine Utm Tensile Testing Equipment Utm Accurate 0.5 Grade Rubber And Plastic Tensile Test Emergency Stop

Description
Model: HZ-1003E Range Of Indentation Hardness: 5KN
Computer System: Real Test Software Control, Chinese And English Measuring Accuracy: 0.5 Grade
Tester Resolution: 1/50000 Load Sensor: Extended Configuration:an Add More Sensors
Warranty: 1 Year Effective Tensile Space: Approx. 500mm
Data Sampling Frequency: 200times/sec Safety Device: Overload, Emergency Stop
Instructions: Provided Computer Connection: Supported
Highlight:

Lab Testing Machine

,

Rubber And Plastic Tensile Test Machine

,

Utm Tensile Testing Equipment

Lab Testing Machine Utm Tensile Testing Equipment Utm Accurate 0.5 Grade Rubber And Plastic Tensile Test Emergency Stop

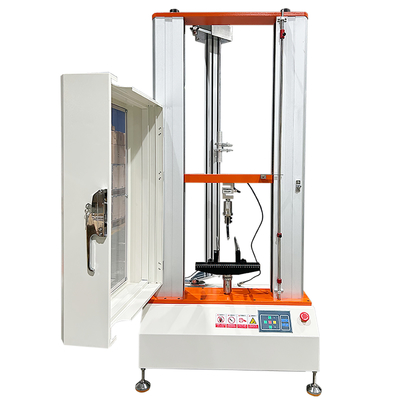

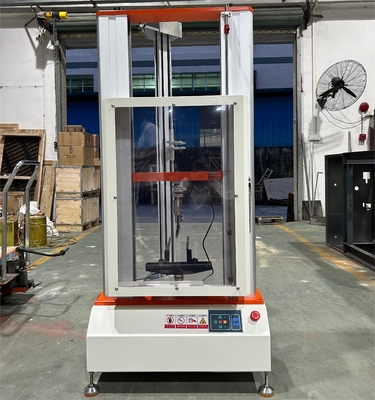

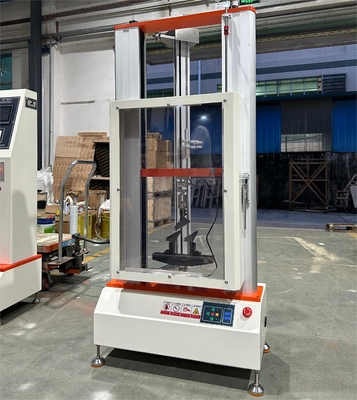

HZ-1003E Dual Column rubber plastic tensile Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. rubber plastic tensile Testing Machine is easy to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line. rubber plastic tensile Testing Machine is mainly applied to test the Rubber which the load is less than 5KN.



Foam indentation hardness tester Technical Parameters

Model Number
HZ-1003E
Max Load
5 KN
Computer system
RealTest software control, Chinese and English
Measuring accuracy
0.5% (5% -100% of full scale)
Tester resolution
1/50000
Load sensor
Extended configuration:an add more sensors
Compression plate size
150*150mm
Effective tensile space
Approx. 500mm
Data sampling frequency
200 times /sec
Safety device
overload,  emergency stop
Power
750W;  AC 220V single-phase
