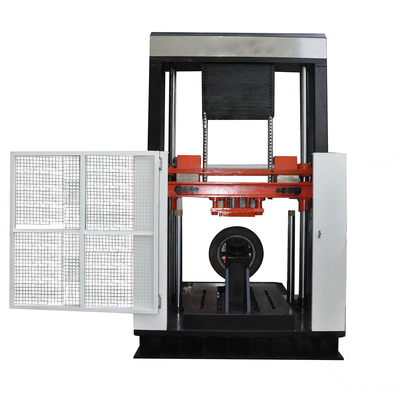

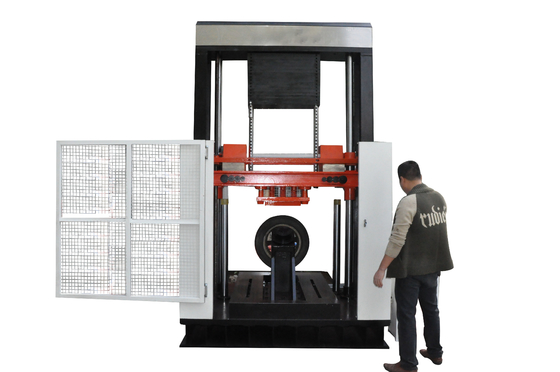

Car Wheel Impact Performance Tire Impact Testing Machine Equipment With Standard Iso7141-2005/ Saej 175

Large Image : Car Wheel Impact Performance Tire Impact Testing Machine Equipment With Standard Iso7141-2005/ Saej 175

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-7037

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Car Wheel Impact Performance Tire Impact Testing Machine Equipment With Standard Iso7141-2005/ Saej 175

Description

Model:	7037	Warranty:	1 Year
Applicable Specifications:	12 "to 28"	Standards:	ISO7141-2005/ SAEJ 175
Impact Angle:	13 Degrees	Impact Methods:	Direct Hammer Impact
Drop Hammer Height:	0~1200mm Adjustable	Safety Devices:	Equipped With Security, Care, Security Doors
Highlight:	Tire Impact Testing Machine , Iso7141-2005 Tire Impact Testing Machine , Saej 175 Tire Impact Testing Machine

Car Wheel Impact Performance Tire Impact Testing Machine Equipment With Standard Iso7141-2005/ Saej 175

Tire Impact Testing Machine Equipment summary:

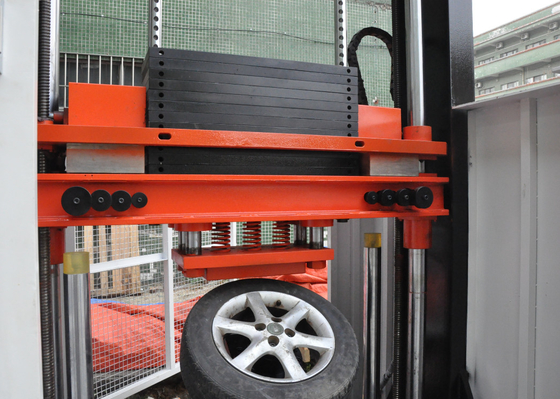

Tire impact testing machine used to evaluate the axial road wheels with the collision characteristics of laboratory tests, to test its impact resistance, it can be 13 ° impact test. Testing machine has a variety of measures to ensure that the impact test security.

Tire Impact Testing Machine Tenhnical parameter:

Model Number	HZ-7037
Certificate	ISO/CE/FCC/3C/ROHS,etc.
Standards	ISO7141-2005/ SAEJ 175
Applicable specifications	12 "to 28"
Impact angle	13 degrees
Impact methods	direct hammer impact
Shipment date	short leadtime
Drop hammer height	0~1200mm adjustable
Safety devices	Equipped with security, care, security doors

Car Wheel Impact Performance Tire Impact Testing Machine Equipment With Standard Iso7141-2005/ Saej 175 0
