Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min

Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min
Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min

Large Image :  Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: CE/ISO
Model Number: HZ-7014
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~8000/ per set
Packaging Details: Standard export wooden case
Delivery Time: 7 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets/per month

Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min

Description
Name: Rubber Products Plate Vulcanizing Press Equipment Temperature Precision: ±2℃
Temperature Controller: PLC Touch-screen Programme Control Mode Temperature Range: ROOM Temperature~300℃
The Way Of Heating: Electric Heat Heating Up Time: Normal Temperature~160℃ About 20min
Weight: 2.5T The Max.distance Between Up And Lower Heating Plate: 300,500mm,800mm
Cylinder Stroke: Max 250 Mm Cylinder Speed: 11 Mm/s
Pressure Gauge: 0~200 Kg/ Sq.cm Dimension: 2*1.5 *2.5 M
Capacity: 100T Motor Power: 4 KW
Power Supply: 220 V Control System: Computer
Display: LCD
Highlight:

Rubber Products Plate Vulcanizing Press Equipment

,

100t Rubber Plate Vulcanizing Press Machine

RuRubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min

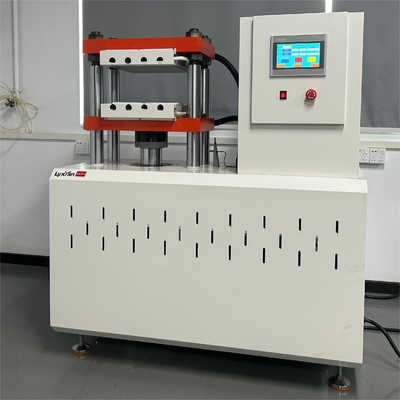

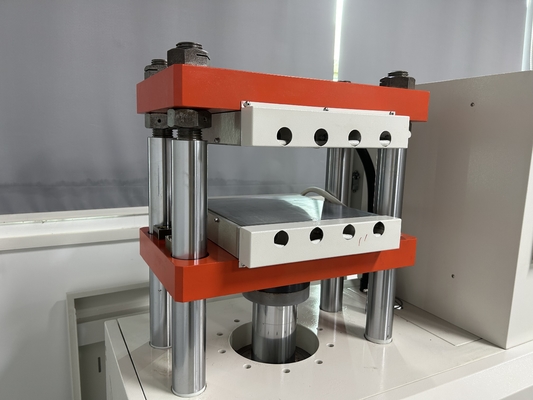

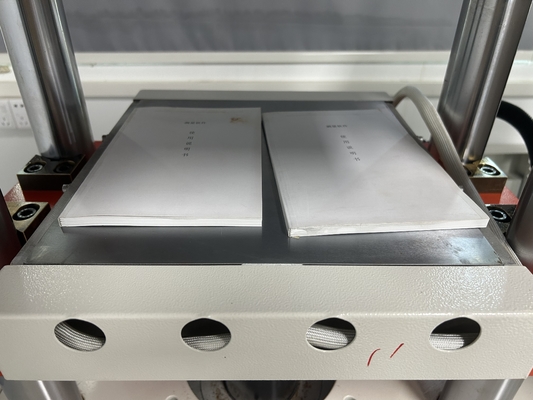

Flat Vulcanizing Machine Description

Flat vulcanizing machine is the main equipment that can be used in pressing all kinds of rubber model product and non-model product. With independent actuating unit and electric system, apply button centralized control. Within certain limits, working pressure and heating temperature can be adjusted. In addition, it also can be used in pressing all kinds of thermosetting plastic and foaming rubber and plastic product. Flat vulcanizing machine is a kind of equipment used in the rubber industry, mainly for vulcanization (also called vulcanization) of rubber products. Vulcanization is a chemical process that uses heat and pressure to bond rubber molecules together, thereby improving the strength, elasticity and durability of rubber products.



Flat Vulcanizing Machine Specification
Model Number
HZ-7014
Exhaust
3-10 times per minute (Adjustable)
Standard
ISO/ASTM/CE/ROSH
Capacity
10T, 20T, 30T, 50T, 80T, 100T
Temperature range
Normal temperature~300°C
Temperature precision
±2°C
Heating method
Electric heating, water-cooled cooling, or the both
Heating plate size
350x350mm, 500x500mm, 1mx1m (or customize)
Cylinder speed
11mm/s
Motor Power
4KW
Pressure gauge
0~200kg/sq.cm
Service
support oversea service


Flat Vulcanizing Machine Features

1.Controlled by PC or manual, performance reliable, high degree of automation. Can automatically identify the wrong command,so avoid the accidence which caused by wrong operation.
2.The preprogrammed process can be locked, the operator can not change without authorization, so that guarantee the quality of pressed product.
3.With the function of timing open mold, automatically exhaust and reinforcing pressure,etc.
4.Optional: Manual operating or Automatic operating mode 5.Electrical heating pressing machine apply digital display(or pointed type) to control temperature, and control and display the heating plate temperature.
Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min 0

Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min 1
Flat Vulcanizing Machine Applicable Industry
It mainly used in producing vulcanizing parallel adhesive type, such as conveyor belt,driving belt, and pressing rubber products, foamed plastic,thermosetting plastic(bakelite) and other plastic products. It also suitable for O ring,the key products such as cell phone, keyboard,remote-control,sealing washer such as pressure cooker, electric cooker, mechanical accessories for household, food, health and medical treatment. At the same time,this machine also can be used in complex silicone and rubber fittings production and process, such as nipple,medical supplies, health product, art ware, toy seal, electro-conductive rubber, automotive rubber parts, industrial rubber parts,medical silicone product, sport equipment, all kinds of vessels, multilayer product and so on.

Rubber Products Plate Vulcanizing Press Equipment 100t Capacity Heating Up Time Normal Temperature~160℃ About 20min 2
