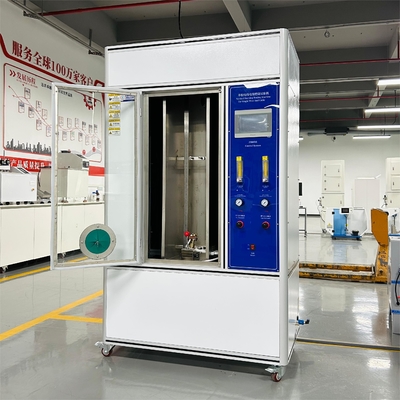

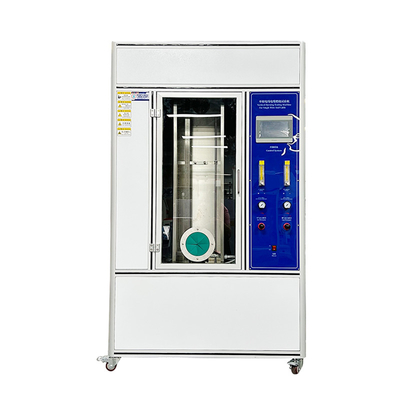

Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm

Large Image : Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm

Product Details:

Place of Origin:	China
Brand Name:	Lixian
Certification:	CE/ISO
Model Number:	HZ-1717

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden case
Delivery Time:	5~8 days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	500 sets/per month

Contact Now

Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm

Description

Model:	HZ-1717i	Combustion Torch:	1KW Mixed Combustion Nozzle
Standard:	IEC60332	Blue Flame Core Height:	46~78mm
Total Flame Height:	170~190mm	Combustion Gas:	95% Pure Propane Gas Or Liquefied Petroleum Gas
Gas Flow Range:	100-1000mL/min For Coal Gas	Pressure Gauge:	0~2kg/mm² Range Adjustment
Air Flow Range:	1-10L/min; (using Float Flowmeter)	Test Length:	675±10mm
Power Supply:	AC 220V, 50Hz	Origin:	China
Highlight:	IEC60332 Vertical Burning Tester Machine , Single Wire Vertical Burning Tester Machine , Blue Flame Vertical Burning Tester Machine

Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm

Single Wire Vertical Burning Tester (Optical Fiber...

Combustion Test Machine Equipment overview:

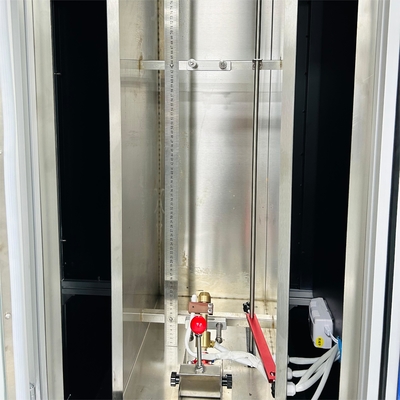

The single wire and cable vertical Burning Tester is suitable for measuring the vertical combustion non-spreading performance of single plastic wire, control wire, cross-linking, elevator, ship, mining cable, etc. It can also be used for vertical combustion tests of high self-extinguishing low-smoke halogen-free flame-retardant polyolefin insulation materials and 105℃ low-smoke halogen-free flame-retardant olefin irradiation insulation materials. This device is a device for conducting combustion resistance tests on single wires and cables. The device has the advantages of high accuracy, automatic timing, automatic end of the test, and easy operation.

Standard:

1. UL94 "Fire Test"

2. GBT2408-2008 "Plastics - Determination of Combustion Properties - Horizontal and Vertical Methods"

3. IEC60695-11-10 "Flame Fire Test"

4. GB5169.16-2017 "Fire hazard test for electrical and electronic products - Part 16: Test flame 50W horizontal and vertical flame test method"

Parameter:

Specification

Model	HZ-1717i Burning Tester
Combustion torch	1KW mixed combustion nozzle
standard	IEC60332
blue flame core Height	46~78mm
total flame height	170~190mm
Combustion gas	95% pure propane gas or liquefied petroleum gas
Gas flow range	100-1000mL/min for coal gas
Air flow range	1-10L/min; (using float flowmeter)
Pressure gauge	0~2kg/mm² range adjustment
Test length	675±10mm

Reference standards: GB/T 18380.11-2008, IEC60332-1-1:2004, GB/T 18380.12-2008, IEC60332-1-2:2004, GB/T 18380.13-2008, IEC60332-1-3:2004, GB/T 18380.21-2008, IEC60332-2-1:2004, GB/T 18380.22-2008, IEC60332-2-2:2004, EN50265-1, EN50265-2-1, GB/T5169.14-2007 and IEC60695-11-2:2003.
