Secondary Image Measuring Instrument (Manual 2D-40...

Second Imaging Measuring Instrument Equipment Summary:

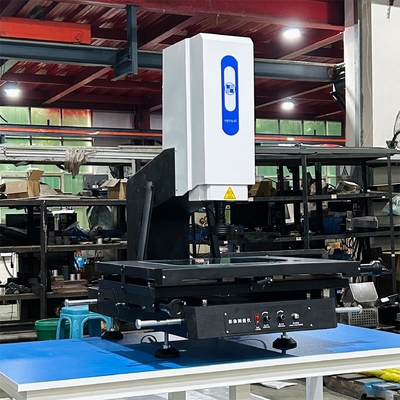

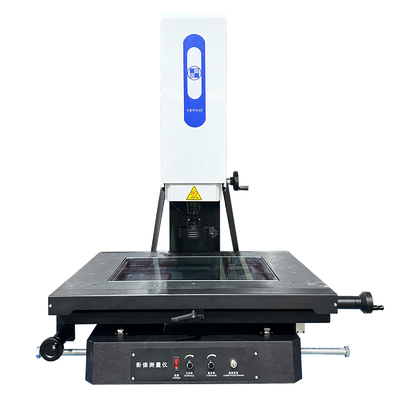

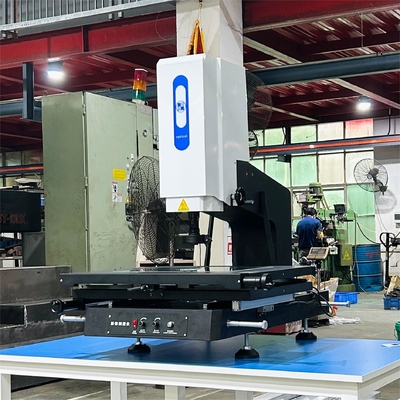

Secondary Image Measuring Instrument (Manual 2D-4030) This instrument is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used.

Second Imaging Measuring Instrument Main Features

1. Machine structure: It adopts a marble flat base workbench and a cantilever structure. The equipment has stable accuracy, strong environmental adaptability, the whole machine is sturdy and not easy to deform, the humanized operating mechanism design is sturdy, simple and generous, and the measurement software is powerful and easy to operate.

2. Mechanism movement: The measuring instrument is three-axis manual control, equipped with high-standard high-precision polished rods, high-precision grinding guide rails, and professional measurement software for measurement.

3. Measurement advantages: Avoid human errors in the "measured workpiece" caused by the original human detection method, and avoid secondary damage to the measured workpiece caused by human detection, ensuring the quality stability and standard consistency of the measured workpiece product. Improve the inspection efficiency of the production process several times, discover and control the defective rate of the production process in advance, reduce some manual inspection costs, and improve the urgency of product shipment.

Second Imaging Measuring Instrument Software Features

1. It can directly measure 12 types of 2D elements (points, lines, circles, arcs, rectangles, slots, rings, open curves, closed curves, cylinders, cones, spheres, and planes). It can measure the circumference, area, diameter, etc. of curves. It uses the NURBS curve fitting algorithm, which is closer to real data than other curve fitting algorithms.

2. There are various measurement methods, including automatic edge finding, segmented automatic edge finding, direct point selection on the mouse screen, crosshair point selection, adjacent point selection, comparison, sharp point selection, contour point selection, etc.

3. Super strong edge finding algorithm to ensure the accuracy of sampling points and sampling stability. Automatic pixel correction, no need for frequent movement, one-click automatic pixel correction.
