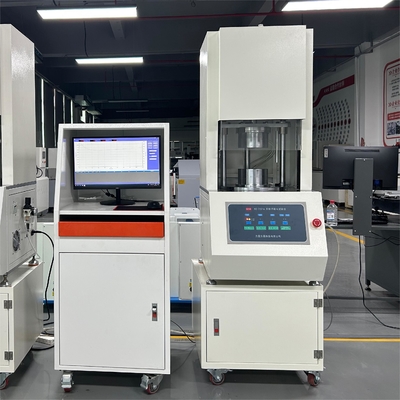

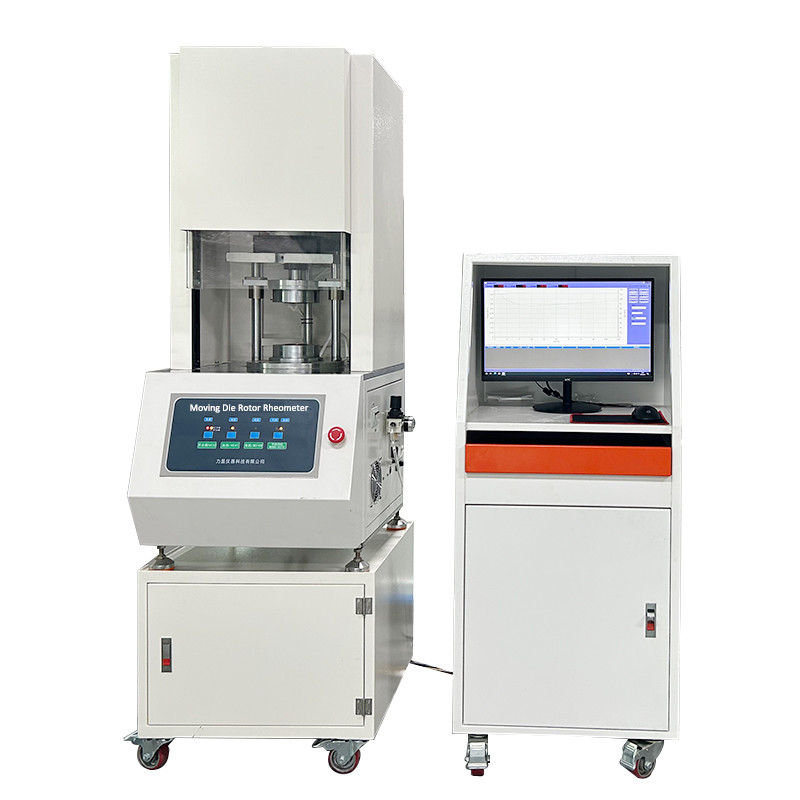

Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289

Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289
Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289
Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289 Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289 Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289 Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289

Large Image :  Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289

Product Details:
Place of Origin: Dongguan city, China
Brand Name: Lixian
Certification: ASTM D5289,ISO 6502
Model Number: HZ-7001A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3000~8000/per set
Packaging Details: wooden package
Delivery Time: 10~15 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/per year
Contact Now

Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289

Description
Power: AC220V±10% 50Hz Warranty: 1 Year
Power Supply: 50Hz, 220V Standard: ASTM D5289,ISO 6502
Application: Rubber Torque Range: 0-20mm
Torque Resolution: 0.001NM Temperature Range: Room Temperature To 200°C
Heating-up: 15 Centigrade/min Swing Speed: 100r/min(1.66HZ)
Highlight:

ASTM D5289 Rubber Rheometer

,

Moving Die Rubber Rheometer

,

Computer Control Rubber Rheometer



Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289

Equipment Overview

Rubber moving die rheometer is the most widely used instrument for rubber quality control, rapid inspection and rubber basic research in rubber processing industry. It provides accurate data for rubber optimum formula combination, which can accurately measure scorch time and positive vulcanization. Instrument time, vulcanization index and maximum and minimum torque parameters.





Standard

Accord with ASTM D5289,ISO 6502



Technical Parameters





Standard  IS06502
Temperature room temperature to 200 Centigrade
Heating-up 15 Centigrade/min
temperature fluctuation ≤ ±0.3 Centigrade
temperature resolution 0.1 Centigrade
torque range 0-5N.M,0-10N.M,0-20N.M
torque resolution 0.001NM
Power 50HZ, ～220V±10%
Pressure Pressure
Air-pressure requirment 0.5Mpa--0.65MPa (user prepare the dia 8 trachea)
Environment temperature 10 Centigrade--20 Centigrade
Humidity range 55--75%RH
Compressed air 0.35-0.40Mpa
Swing angle ±0.5 Centigrade ,±1 Centigrade ,±3 Centigrade
Printing date,time,temperature,vulcanization curve,temperature curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2.



Working principle

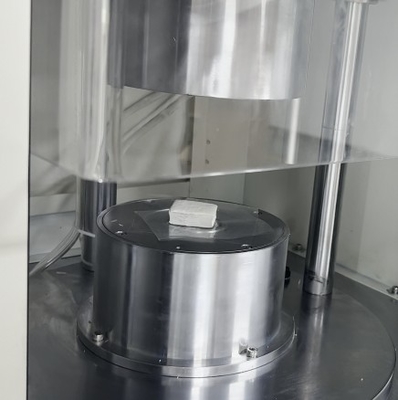

The rubber sample is placed in a nearly completely closed cavity and maintained at the test temperature. The
cavity has two upper and lower parts, wherein the lower part reciprocates with a slight linear motion (oscillation), and the
sample is sheared by oscillation. The reaction torque (force) of the sample to the cavity is determined, and the magnitude of the torque (force) depends on the shear modulus of the rubber. After the start of the vulcanization test, the shear modulus of the sample increases, and the computer displays and records the torque (force) in real time. When the torque (force) rises to a stable value or a maximum value or even returns to the state, a torque is obtained. The relationship between force and time, that is, the vulcanization curve , the shape of the curve is related to the temperature of the test and the characteristics of the compound.

Applicable Industry
It is the most important testing instrument for national research and development of new products, research on rubber compound formula, control rubber material quality and rubber basic research application. Widely used in all walks of life in rubber products.
Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289 0

Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289 1
Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289 2

Moving Die Rubber Rheometer Computer Control Meeting Standard ASTM D5289 3
