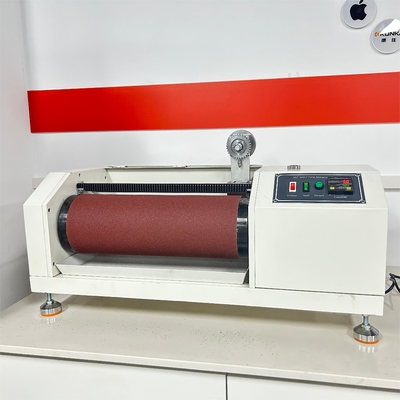

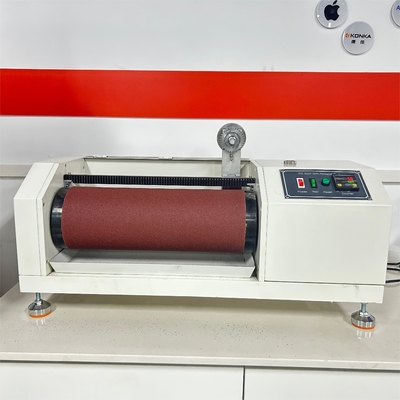

Din Abrasive Resistance Test Equipment For Rubber Standard ISO-4649
DIN abrasive testerHZ-3007.pdf
Din Abrasive Test Machine Equipment description:
The main function of DIN abrasive tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of material
Din Abrasive Test Machine Corresponding standard :
DIN-53516；ISO-4649；GB/T9867-88；
Applicable Industry
Applied to test leather performance in shoes, clothing, luggage, handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments
Main functions
This tester is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.
|
Model Number
|
HZ-3007
|
|
Testing Load
|
2.5N, 7.5N
|
|
Specimen Size
|
dia 16mm, thickness at least 6mm
|
|
Specimen Load
|
10N± 0.2N.
|
|
Diameter of wear wheel
|
dia 150mm.
|
|
Speed of wear wheel
|
40 ±1RPM.
|
|
Emery cloth Specification
|
60 #, seam is less than 2mm.
|
|
Test-arm weight
|
250 ± 5 (g).
|
|
Testing Length
|
40M (about 84 rotate)
|
|
Standard
|
DIN-53516;ISO-4649
|
|
Horizontal displacement
|
4.2mm / rotate
|
