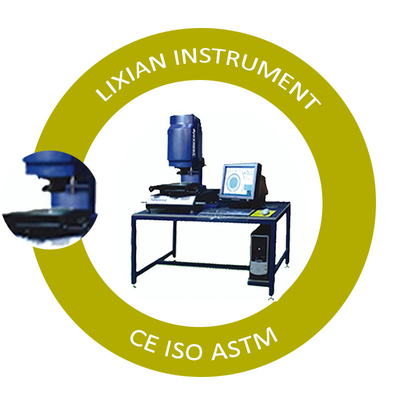

Probe-Type Imaging Measuring Instrument Operating Temperature 13-35 ℃ Coordinate Measuring Machine

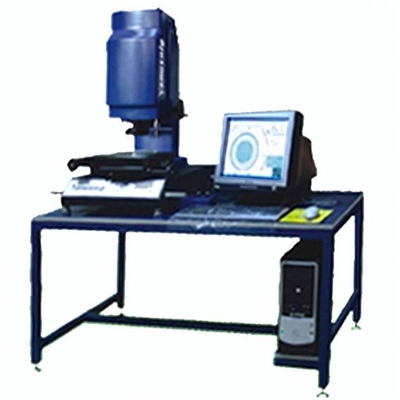

Large Image : Probe-Type Imaging Measuring Instrument Operating Temperature 13-35 ℃ Coordinate Measuring Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-3506

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wooden
Delivery Time:	7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Probe-Type Imaging Measuring Instrument Operating Temperature 13-35 ℃ Coordinate Measuring Machine

Description

PRODUCT NAME:	Probe-type Imaging Measuring Instrument	 Measure Range：：:	150(X)X75(Y)X150(Z)mm
Linear Precision:	(3+L/200)um	Repeat Precision:	3um
Minimum Display Digit：:	0.001mm	Working Temperature::	20 ± 1 ℃
Operating Temperature:	13-35 ℃	EMC Compliance Test:e:	OK
Machine Weight：:	140Kg	Operating Voltage:	220V
Highlight:	Coordinate Measuring Machine , Probe-Type Imaging Measuring Instrument

Coordinate Measuring Machine Probe-Type Imaging Measuring Instrument Repeat Precision 3um

Video measuring instrument Equipment Summary:

CMM probe-type imaging measuring instrument is equiped with the high stability granite of 00.grade. Adopting the Swiss TESA patent optical measuring system. YR-3T Multifunctional image, the probe measurement software interlock. Made in Taiwan wear-resistant high V-rails.

Specification

Model	3506A
Measure range	150(X)75(Y)150(Z)mm
Linear precision:	(3+L/200)um
Repeat precision	3um
Minimum display digit:	0.001mm
Working distance	115mm (Image)
Measurement Software	YR-3T
Working temperature	20 ± 1 ℃
Operating temperature	13-35 ℃
Operating voltage	220V

Measuring method:
1. image type + probe type
2. imported high-resolution color video camera
3. Taiwan magnification zoom lens system
of 0.7-4.5Zoom Change: 20X-220X
4. Switzerland TESA probe: ¢ 2, ¢ 3mm
5. Working distance: 115mm (Image)
6. world famous computer: DELL / PC machine / 17 "flat screen computer

Probe:
1. single direction Repeatability: ≤ 0.75um

2. probe pressure adjustment:0.1-0.3N
3. Thread:M2-M3
4. stylus ting pole material:stainless steel or tungsten

Probe-Type Imaging Measuring Instrument Operating Temperature 13-35 ℃ Coordinate Measuring Machine 0
