Video Measuring Instrument Machine For Electronics CMS-200 Accuracy U 0.001mm

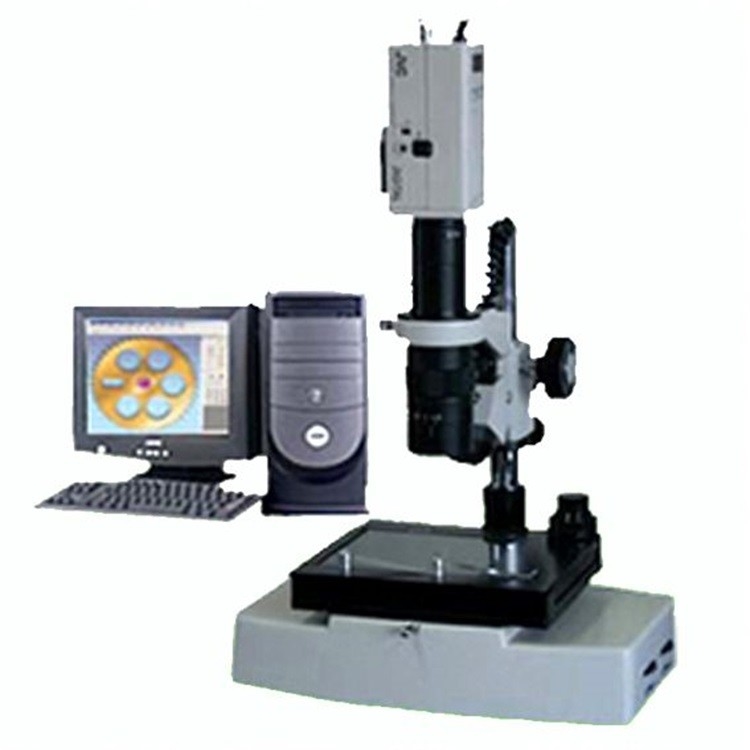

Large Image : Video Measuring Instrument Machine For Electronics CMS-200 Accuracy U 0.001mm

Product Details:

Place of Origin:	CHINA
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-3505

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wooden
Delivery Time:	7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Video Measuring Instrument Machine For Electronics CMS-200 Accuracy U 0.001mm

Description

PRODUCT NAME:	Automatic CMM Machine For Motorcycle, Military Industry, Electronics	Video Total Magnification:	40 ~ 220Xu
Overall Dimensions （mm）:	U 0.001mm	Mechanical Loading Mobile Range:	X Axis:u 75mm
Y-axis:	55mm	U Object Field Of View Diameter:	28mm
Working Distance:	108mmu	U Focus Range:	60mm
Imaging System:	JVC Company Of Japan 1 / 3u "	Warranty:	1 Year
Highlight:	CMS-200 Video measuring instrument machine , Electronics Video measuring instrument machine , u 0.001mm Video measuring instrument machine

Video measuring instrument machine for Electronics CMS-200 Accuracy u 0.001mm

Video measuring instrument Equipment Summary:

CMS-200 video measuring instrument is the traditional zoom lens and professional color CCD camera, and the combination of computer technology equipment. It is used to measure the second coordinate for the purpose of all applications, especially for small parts is particularly applicable to non-contact profile measurement

Video measuring instrument Specification

Model	3505A
Video Total magnification	40 ~ 220Xu
Accuracy	u 0.001mm
mechanical loading mobile range	X axis:u 75mm
Y-axis	55mm
u object field of view diameter	28mm
Working distance	108mmu
u Focus range	60mm
imaging system	JVC Company of Japan 1 / 3u "
Lighting	LED, adjustable brightness

Video measuring instrument​ Main Feature:The full account of teaching demonstration equipment, industrial inspection on the convenience and intuitive design requirements,are widely used in observation and analysis, electronics and precision mechanical assembly and testing of agricultural seed inspection, archaeological inspection.

Video measuring instrument​ Introduction:
This system is the traditional microscopy, advanced optical conversion technology, cutting-edge computer image processing technology developed for the perfect combination of a high-technology products successfully developed. It not only can the observed artifacts displayed on the computer screen, the image can be observed easily measured in the computer graphics of any geometry (point, line, circle, arc, ellipse, rectangle, angle, distance of the two center of the circle distance of two parallel lines, point to the straight line distance, vertical length, etc.), rapid measurement of the size of the workpiece, automatic annotation is a relatively inexpensive measurement equipment.

Video measuring instrument​ Applicable industry:
Widely used in machinery, electronics, instrumentation, plastics and other industries. It is low cost, high-cost, simple and practical features, popular business units of all ages.

Tag:

Contact Person: liang

Tel: 8613711888650

Fax: 86--13827265866
