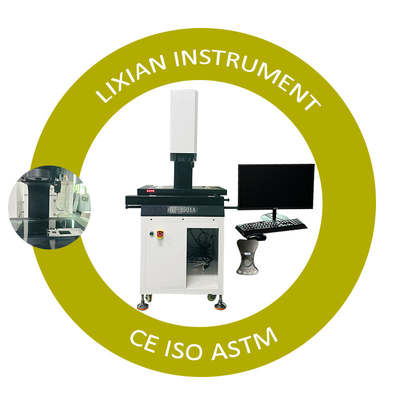

Second Imaging Measuring Instrument Equipment Summary:
This instrument is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used.
Second Imaging Measuring Instrument Main Fuction :
1, can be made into a product photographs and products to jpeg formats stored in computer form product library
2, and will be stored in computer photos in open and in real-time images of the same picture were compared
3, graphics, can input to AutoCAD become engineering drawings
4, AutoCAD standard engineering drawings can input real-time image, making AutoCAD engineering drawings and the actual shape overlap, comparing the workpiece so as to find out the difference between the workpiece and engineering drawings
5, can input previously photos stored jpeg image to real-time image with actual workpiece overlap contrast
6, a bird's eye view of the map in size to mark
7, custom round: according to customer needs a home-grown standard circular, again with standard circle and the workpiece do overlap contrast images, so as to find the workpiece and standard circular errors between
8, custom hidden-lines: to define the starting point coordinates interval-number, length, rotating Angle, again with images of workpiece as overlap contrast, so as to find the workpiece and standard graphic errors between

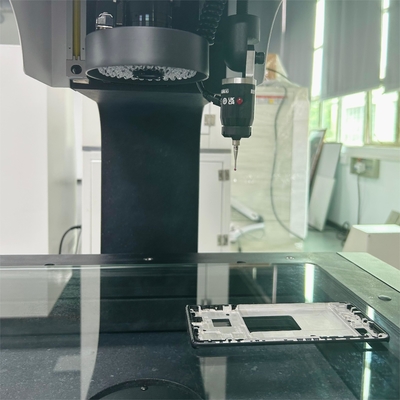

Measured rendering
| Model No |

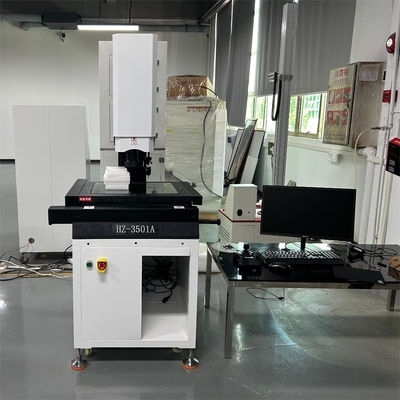

3501A
|
| Main body size |
540*560*850mm |
| Table of metal |
300*250mm |
| Glass counter size |
220*160mm |
| Actual working travel |
150*100*80mm |
| application |
machinery, electronics, instruments, plastic etc |
| Machine bottom sit |
High precision granite base and bar |
| Linear precision |
(3+L/150)um |
| Surface lighting |
LEDThe annular ultra bright cold light(Brightness adjustable) |
| Outline lighting |
LEDUltra bright circular lamp(Brightness adjustable) |
| Calculating measurement functions |
REICA 2.5DPrecision measuring system software |
| Resolving power |
0.001mm |
| Repeat precision |
0.003mm |
| CCD |
SONY chip 1/3 colorfulCCD |
| eyepiece |
0.5X(optional 1X,2x) |
| objective |
0.7X~4.5X magnifacation 20X~120X |
| Power supply |
AC90~264V 50/60Hz |
Second Imaging Measuring Instrument Main Feature:
1, zoom ShiZiXian generator as objective and measuring aiming system,
2, image measuring instrument has a variety of data processing, display, input and output functions, especially the workpiece adjust function very practical.
3, high resolution 9 segments, change the objective set times not to reconsider avaiable selection scale
4, image measuring instrument spare R232 interface, after connect with computer, using special measuring software can be processed on surveying and mapping graphics and output
VMS-1510 Second imaging measuring instrument
