High Efficiency Dynamic Balancing Machine For Wind Blade Water Pump Impellers LCD Screen Drill Press Weight Reduction Type

Large Image : High Efficiency Dynamic Balancing Machine For Wind Blade Water Pump Impellers LCD Screen Drill Press Weight Reduction Type

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	ce
Model Number:	HZ-9705A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

High Efficiency Dynamic Balancing Machine For Wind Blade Water Pump Impellers LCD Screen Drill Press Weight Reduction Type

Description

Model:	HZ-9705A	Unbalance Reduction Rate (%):	URR≥90%
Color:	Orange,white	Motor Power (kw):	0.25KW
Balancing Mode:	Dynamic	Display:	LCD
Measurement Range:	5 Kg	Power Supply:	220V/50HZ
Product Name:	Dynamic Balancing Machine	Software:	Windows
Max Diameter Of Workpiece:	300mm,600mm	Operation Mode:	Manual/Automatic
Highlight:	LCD Screen Dynamic Balancing Machine , Double Sided Dynamic Balancing Machine , 6000rpm Dynamic Balancing Machine

Dynamic Balancing Machine For Water Pump Impellers LCD Screen 1000-6000rpm Speed High Efficiency Double-Sided

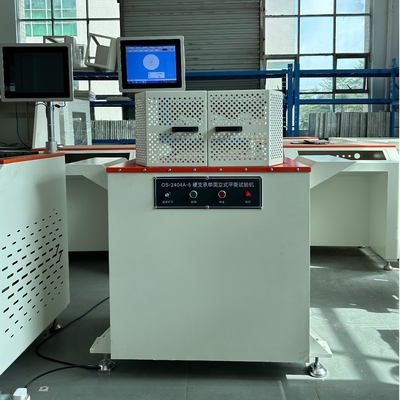

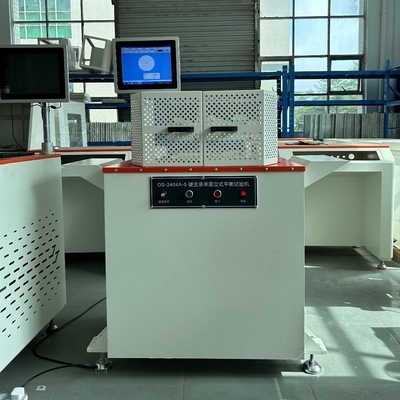

Dynamic Balancing Machine Product Description

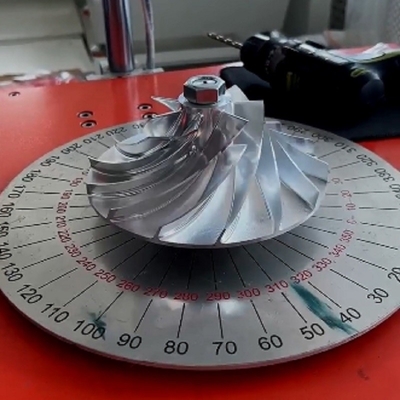

Hard Bearing Single-Sided Vertical Dynamic Balancing Machine is widely used in the balancing effect of disc workpieces such as water pump impellers, brake discs, wind blades, fans, pulleys, etc. The display part of this product is in the form of a 12.1-inch LCD screen. It not only has the characteristics of large measurement range, high efficiency, safe and simple operation, and intuitive display, but also occupies a leading position in the domestic balancing machine industry. Before operation, just set the radius data of the workpiece to be checked, and the unbalance amount and corresponding phase value of the workpiece can be correctly displayed at one start.

Dynamic Balancing Machine Measurement system
The measuring system is the core of the balancing machine. This system uses the latest CPU computing chip, and after signal amplification, filtering, analog-to-digital conversion, it performs calculations to display the measured data. It also has the output of database, communication data and control signals, including the connection of printers. The human-computer dialogue
interface is intuitive and simple to operate, and is suitable for the display mode of industrial production environments. After
strict multi-level component screening, large-scale electrical circuit manufacturing technology, and high and low temperature
aging tests, it can be suitable for accurate measurements of balancing machines in different environments.

Dynamic Balancing Machine Specification

Model Number	HZ-9705A
Max Mass of Workpiece(kg)	5KG
Max Diameter of Workpiece	300mm,600mm
Measurement method	Single-sided
Spindle bearing	NSK
Ceramic piezoelectric sensor	1 Set
Balance speed	1100r/min
Balance speed (r/min)	400-3000 frequency
Motor Power	0.25 (kw)
Minimun residual unbalance	≤5 g.mm/kg
Unbalance reduction rate (%)	URR≥90%
